H455CBC - Bivar

Description: Bivar H455CBC, Green & Red Right Angle PCB LED Indicator, 4 LEDs 3mm (T-1), PCB Mount

Download H455CBC Model

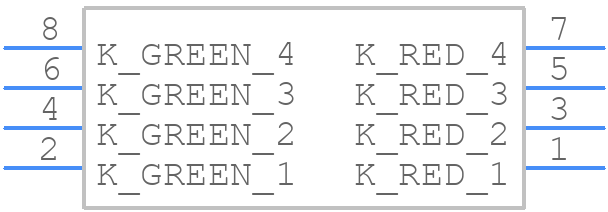

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
H455CBC - Bivar PCB footprint - Other - Other - H455CBC-2
click to zoom
3D Models
H455CBC - Bivar  - 3D model - Other - H455CBC-2
click to zoom

H455CBC Details

  • Manufacturer Part Number:

    H455CBC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Bivar Inc

  • YTEOL:

    6.25

  • Color:

    HIGH EFFICIENCY RED/GREEN

  • Configuration:

    4 BANKS, COMMON BIPOLAR TERMINAL, 2 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.8 V

  • Lens Type:

    DIFFUSED WHITE

  • Luminous Intensity-Nom:

    6.0 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    4

  • Number of LEDs in Array:

    8

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    DUAL COLOR LED ARRAY

  • Overall Height:

    16.8 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    625/568 nm

  • Reverse Voltage-Max:

    5 V

  • Shape:

    ROUND

  • Size:

    3 mm

  • Surface Mount:

    NO

  • T-code:

    T-1

  • Terminal Pitch:

    2.5 mm

  • Viewing Angle:

    45 deg

H455CBC Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds.
  • Yes, the H455CBC is suitable for outdoor use, but it's recommended to use a clear or diffused lens to protect the LED from environmental factors.
  • The maximum forward voltage is 3.5V, exceeding this may damage the LED.
  • Use a thermal interface material (TIM) and ensure the LED is mounted on a heat-sink or PCB with a thermal conductivity of at least 1 W/m-K.
  • Yes, the H455CBC is designed to withstand vibrations up to 10G, but it's recommended to use a secure mounting method to prevent damage.
