H485CGDL-RP - Bivar

Description: LED Circuit Board Indicators LED Assembly, Right Angle, 1.8 mm LED, Quad-Level, 1 Station, Green, 565 nm.....

Download H485CGDL-RP Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this H485CGDL-RP model

Email notifications will be applied after download.

Send part feedback

Symbol

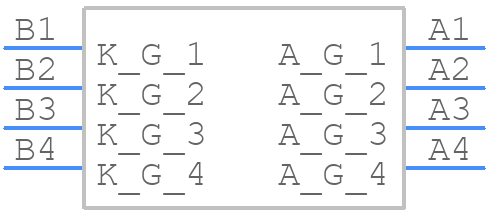

H485CGDL-RP - Bivar - PCB symbol

PCB Footprints

H485CGDL-RP - Bivar PCB footprint - Other - Other - H485CGDL-RP-6

Datasheet Download Datasheet
Stock & Prices Price & Stock for H485CGDL-RP
Part Number H485CGDL-RP
Manufacturer Bivar
Pin Count 8
Part Category LED
Package Category Other
Footprint Name Other - H485CGDL-RP-6
Released Date Sep 21, 2021
Last Modified Date Jan 14, 2024 6:26 AM UTC
Pinout / Pin List Click Here (Member Only)

H485CGDL-RP Details

Manufacturer Part Number:
H485CGDL-RP
Rohs Code:
Yes
Part Life Cycle Code:
Active
HTS Code:
8541.40.20.00
Manufacturer:
Bivar Inc
YTEOL:
6
Optoelectronic Device Type:
DUAL COLOR LED ARRAY

Trust Checks

Community Provided

System Verified

Community Approved

H485CGDL-RP Overview

Use the download button to access the H485CGDL-RP schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like H485C, or try a keyword search, such as Visible LEDs
