H485CHYGAD - Bivar

Description: LED Circuit Board Indicator LED Circuit Board Indicator 4 High Amber (x 1), Green (x 1), Red (x 1), Yellow (x 1) Diffused 2V Amber, 2.1V Green, 2V Red, 2V Yellow 20mA Amber, 20mA Green, 20mA Red, 20mA Yellow Round with Domed Top 1.80mm Dia

Download H485CHYGAD Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this H485CHYGAD model

Email notifications will be applied after download.

Send part feedback

Symbol

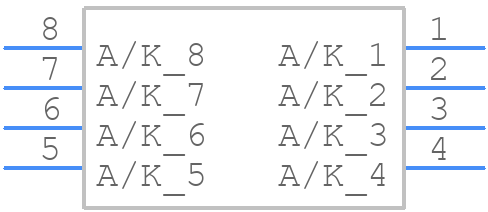

H485CHYGAD - Bivar - PCB symbol

PCB Footprints

H485CHYGAD - Bivar PCB footprint - Other - Other - H485CHYGAD-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for H485CHYGAD
Part Number H485CHYGAD
Manufacturer Bivar
Pin Count 8
Part Category LED
Package Category Other
Footprint Name Other - H485CHYGAD-2
Released Date Mar 30, 2023
Last Modified Date Mar 30, 2023 10:26 AM UTC
Pinout / Pin List Click Here (Member Only)

H485CHYGAD Details

Manufacturer Part Number:
H485CHYGAD
Rohs Code:
Yes
Part Life Cycle Code:
Active
HTS Code:
8541.40.20.00
Manufacturer:
Bivar Inc
YTEOL:
6
Optoelectronic Device Type:
DUAL COLOR LED ARRAY
