- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HA0470500000G
- Part Number HA0470500000G
- Manufacturer Amphenol
- Pin Count 8
- Part Category Connector
- Package Category Header, Shrouded - Straight PTH Box

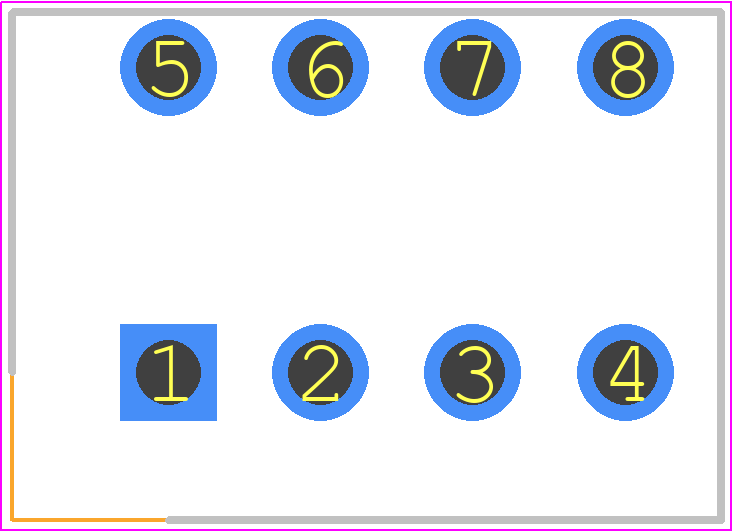

- Footprint Name Header, Shrouded - Straight PTH Box - HA0470500000G
- Released Date Nov 20, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HA0470500000G Details
-
Manufacturer Part Number:
HA0470500000G
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
Amphenol Corporation
-
YTEOL:
7.87
-
Additional Feature:
STANDARD: UL 94V-0, POLYETHYLENE
-
Fastening Method:
SPRING LOADED
-
Mounting Type:
BOARD
-
Number of Decks:
1
HA0470500000G Frequently Asked Questions (FAQs)
-
The recommended torque for the HA0470500000G connectors is 0.5-1.5 Nm (4-12 in-lbs) for the screw-locking mechanism, and 1-2 Nm (8-16 in-lbs) for the nut-locking mechanism.
-
Yes, the HA0470500000G connectors are designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10 G peak acceleration.
-
Yes, the HA0470500000G connectors are designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and a humidity range of 5-95% RH.
-
Yes, the HA0470500000G connectors are designed to meet the requirements of MIL-DTL-38999 and EN3645, making them suitable for use in aerospace, defense, and other high-reliability applications.
-
The HA0470500000G connectors have a mating cycle life of 500-1000 cycles, depending on the specific application and environmental conditions.
Trust Checks
Community Provided
System Verified
Community Approved
HA0470500000G Overview
Use the download button to access the HA0470500000G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HA047,
or try a keyword search, such as Terminals and Terminal Blocks
About Amphenol
Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems.
The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
