HA1-5320-2 - Renesas Electronics

Description: The HA-5320 was designed for use in precision, High-Speed data acquisition systems. The circuit consists of an input transconductance amplifier capable of providing large amounts of charging current, a low leakage analog switch, and an output integrating amplifier. The analog switch sees virtual ground as its load; therefore, charge injection on the hold capacitor is constant over the entire input/output voltage range. The pedestal voltage resulting from this charge injection can be adjusted to zero by use

Download HA1-5320-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

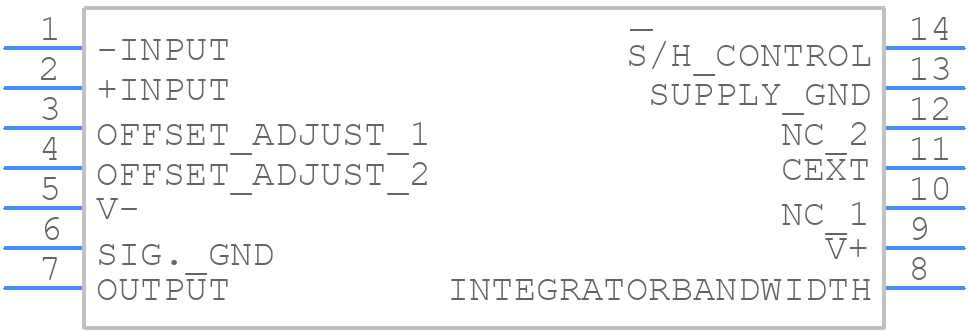

HA1-5320-2 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
HA1-5320-2 - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - F14.3 MIL-STD-1835 GDIP1-T14 (D-1, CONFIGURATION A) 14 LEAD CERAMIC DUAL-IN-LINE FRIT SEAL PACKAGE
click to zoom
3D Models
HA1-5320-2 - Renesas Electronics - 3D model - Dual-In-Line Packages - F14.3 MIL-STD-1835 GDIP1-T14 (D-1, CONFIGURATION A) 14 LEAD CERAMIC DUAL-IN-LINE FRIT SEAL PACKAGE
click to zoom

HA1-5320-2 Details

  • Manufacturer Part Number:

    HA1-5320-2

  • Brand Name:

    Renesas

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CERDIP

  • Package Description:

    DIP-16

  • Pin Count:

    14

  • Manufacturer Package Code:

    F14.3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Acquisition Time-Max:

    1.5 µs

  • Acquisition Time-Nom:

    1 µs

  • Amplifier Type:

    SAMPLE AND HOLD CIRCUIT

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Droop Rate-Max:

    100 V/s

  • JESD-30 Code:

    R-GDIP-T16

  • JESD-609 Code:

    e0

  • Length:

    19.94 mm

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

HA1-5320-2 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure that the device is operated within the recommended voltage and current limits, and that the PCB is designed to minimize thermal gradients. Also, consider using a thermal interface material to improve heat transfer.
  • Critical timing parameters include clock frequency, setup and hold times, and signal rise and fall times. Ensure that these parameters are met by using a clock generator with a stable frequency, and by using signal conditioning circuits to ensure signal integrity.
  • Use a logic analyzer or oscilloscope to capture and analyze the device's signals. Check the device's datasheet and application notes for troubleshooting guides and common pitfalls to avoid.
  • Power sequencing should follow the recommended sequence in the datasheet. Voltage ramp-up should be slow and controlled to prevent damage to the device. A soft-start circuit can be used to control the voltage ramp-up.
