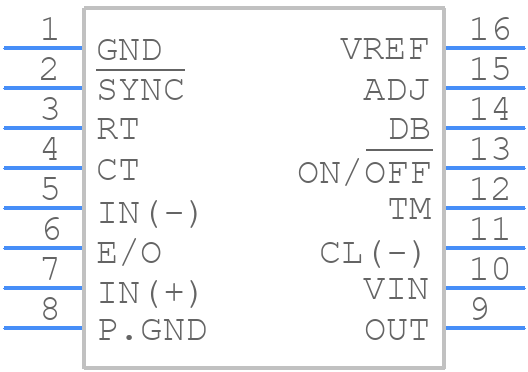

HA16120FP - HITACHI

HA16120FP Details

• Manufacturer Part Number:

  HA16120FP

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

• Part Package Code:

  SOIC

• Package Description:

  SOP-16

• Pin Count:

  16

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Hitachi Ltd

• Analog IC - Other Type:

  SWITCHING CONTROLLER

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  40 V

• Input Voltage-Min:

  3.9 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PDSO-G16

• Length:

  10.06 mm

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

• Output Current-Max:

  1 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.2 mm

• Surface Mount:

  YES

• Switcher Configuration:

  SINGLE

• Switching Frequency-Max:

  600 kHz

• Temperature Grade:

  OTHER

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  5.5 mm
