HA1630D06MMEL-E footprint, schematic symbol and 3D model by Renesas Electronics

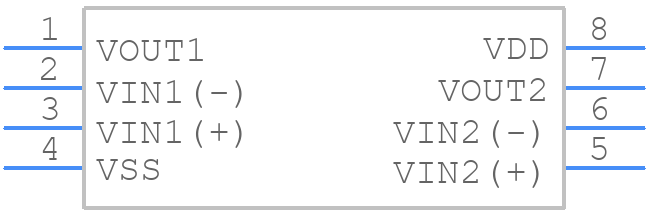

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HA1630D06MMEL-E
Part Number HA1630D06MMEL-E
Manufacturer Renesas Electronics
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - MMPAK-8
Released Date Mar 8, 2022
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

HA1630D06MMEL-E Details

Manufacturer Part Number:
HA1630D06MMEL-E
Brand Name:
Renesas
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
LSOP
Package Description:
MPAK-8
Pin Count:
8
Manufacturer Package Code:
PLSP0008JC
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Renesas Electronics Corporation
YTEOL:
0
Amplifier Type:
OPERATIONAL AMPLIFIER
Architecture:
VOLTAGE-FEEDBACK
Common-mode Reject Ratio-Min:
50 dB
Common-mode Reject Ratio-Nom:
70 dB
Frequency Compensation:
YES
Input Offset Voltage-Max:
4000 µV
JESD-30 Code:
R-PDSO-G8
Length:
2.95 mm
Low-Bias:
YES
Low-Offset:
NO
Micropower:
NO
Number of Functions:
2
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP8,.16
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Power:
NO
Programmable Power:
NO
Seated Height-Max:
1.1 mm
Slew Rate-Nom:
8 V/us
Supply Current-Max:
3.4 mA
Supply Voltage Limit-Max:
7 V
Supply Voltage-Nom (Vsup):
3 V
Surface Mount:
YES
Technology:
CMOS
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Unity Gain BW-Nom:
3600
Voltage Gain-Min:
1000
Wideband:
NO
Width:
2.8 mm

HA1630D06MMEL-E Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
Ensure that the device is operated within the recommended voltage and current ranges, and that the PCB is designed to minimize thermal resistance. Additionally, consider using thermal simulation tools to optimize the design.
A 10uF ceramic capacitor with X7R or X5R dielectric should be placed as close as possible to the device's power pins. Additional 1uF and 0.1uF capacitors can be added in parallel to filter out high-frequency noise.
Check the power supply voltage and ensure it is within the recommended range. Verify that the POR pin is properly connected and that there are no issues with the reset circuitry. Use an oscilloscope to monitor the POR pin and verify that it is functioning correctly.
Operating the device at the maximum junction temperature can reduce its lifespan and affect its reliability. It is recommended to operate the device at a temperature at least 10°C below the maximum rating to ensure optimal performance and reliability.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

HA1630D06MMEL-E Overview

Use the download button to access the HA1630D06MMEL-E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like HA163, or try a keyword search, such as Operational Amplifiers
