HA17358 - HITACHI

Description: IC

Download HA17358 Model

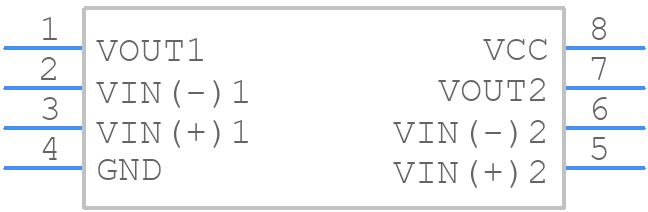

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HA17358 - HITACHI PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DP-8_21
click to zoom
3D Models
HA17358 - HITACHI  - 3D model - Dual-In-Line Packages - DP-8_21
click to zoom

HA17358 Details

  • Manufacturer Part Number:

    HA17358

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    DIP

  • Package Description:

    DP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Hitachi Ltd

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.25 µA

  • Bias Current-Max (IIB) @25C:

    0.25 µA

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    7000 µV

  • JESD-30 Code:

    R-PDIP-T8

  • Length:

    9.6 mm

  • Low-Offset:

    NO

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.06 mm

  • Slew Rate-Nom:

    0.2 V/us

  • Supply Current-Max:

    2 mA

  • Supply Voltage Limit-Max:

    32 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Min:

    5600

  • Width:

    7.62 mm

HA17358 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the HA17358 is 4.5V to 18V, although the datasheet only specifies a minimum voltage of 4.5V.
  • To ensure the internal voltage regulator is stable, it's recommended to use a 10uF capacitor between the VIN pin and GND, and a 1uF capacitor between the VCC pin and GND.
  • The maximum output current of the HA17358 is 100mA per channel, although the datasheet doesn't explicitly state this.
  • To protect the HA17358 from overvoltage, it's recommended to use a voltage clamp or a zener diode between the VIN pin and GND to limit the voltage to 18V or less.
  • While the HA17358 can operate up to 85°C, it's recommended to derate the output current and voltage to ensure reliable operation in high-temperature environments.
