Renesas provides a recommended PCB layout guide in their application note (APL-AN-114) for the HA3-5033-5, which includes thermal vias, copper pours, and component placement guidelines to ensure optimal thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable heat sink, and implement thermal monitoring and protection mechanisms, such as thermal shutdown and over-temperature protection.
Renesas recommends using low-ESR capacitors with a value of 10uF to 22uF for the input and output capacitors. The specific capacitor values and types may vary depending on the application and operating conditions.
To troubleshoot OVP or UVP faults, check the input voltage, output voltage, and current levels. Verify that the input voltage is within the recommended range, and the output voltage is within the specified tolerance. Also, ensure that the device is not overheating and that the current levels are within the specified limits.
The recommended start-up sequence for the HA3-5033-5 is to first apply the input voltage, followed by the enable signal (EN). This ensures that the device starts up correctly and avoids any potential latch-up or damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HA3-5033-5 Overview

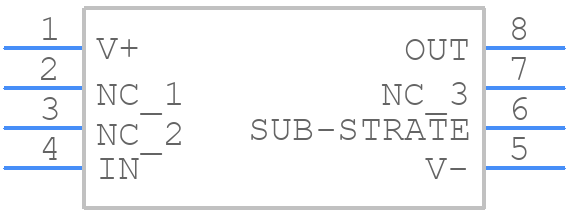

Use the download button to access the HA3-5033-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HA3-5,
or try a keyword search, such as Buffer Amplifiers
