Coilcraft provides a recommended PCB land pattern in their application notes, which can be found on their website. The recommended land pattern ensures proper soldering and minimizes thermal resistance.
To handle the high current rating, ensure that the PCB traces and vias are designed to handle the maximum current rating of the inductor. Use thicker traces, multiple vias, and consider using a copper pour to reduce resistance and heat generation.
The SRF of the HA3691-ALB is typically above 100 MHz. When operating near or above the SRF, the inductor's impedance increases, and it may start to behave like a capacitor. Ensure that your design takes into account the SRF to avoid unwanted resonances and oscillations.
The HA3691-ALB has a maximum operating temperature of 125°C. While it can operate in high-temperature environments, the inductor's performance and lifespan may be affected. Consider derating the inductor's current rating and using thermal management techniques to ensure reliable operation.
Follow Coilcraft's recommended soldering profile, and ensure that the PCB is designed with a solder mask to prevent solder bridging. Use a solder with a high melting point, and consider using a reflow oven or hot air soldering to ensure proper soldering.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HA3691-ALB Overview

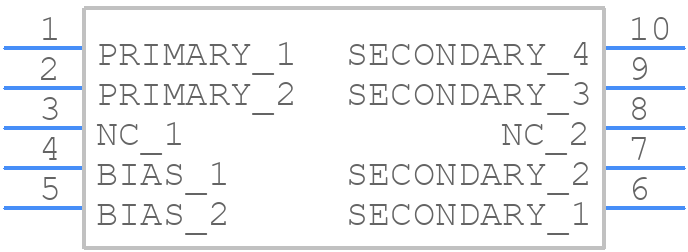

Use the download button to access the HA3691-ALB schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HA369,
or try a keyword search, such as SMPS Transformers
About COILCRAFT
Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
