HA4060-AL footprint, schematic symbol and 3D model by COILCRAFT

Symbol

click to zoom

PCB Footprints

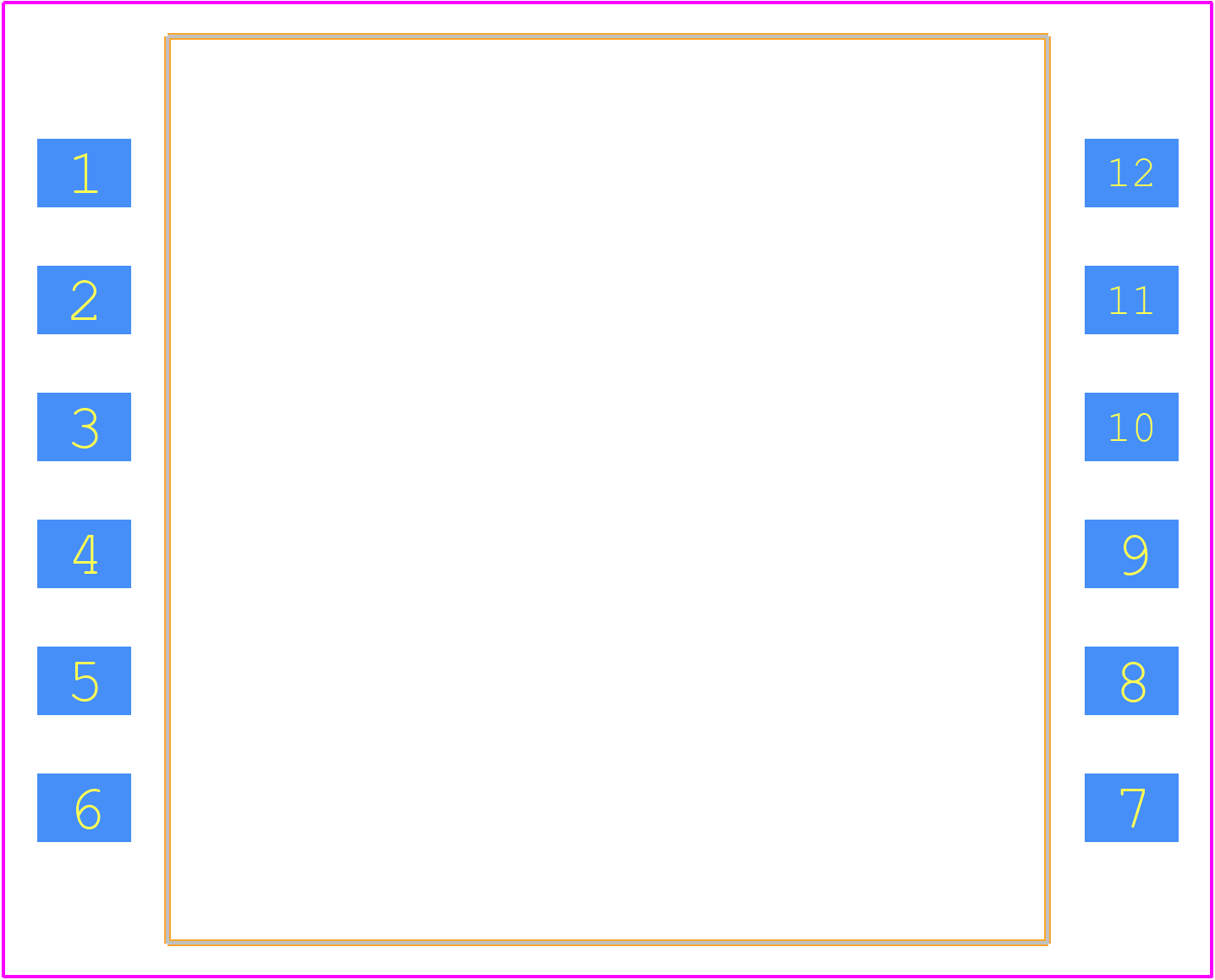

HA4060-AL - COILCRAFT PCB footprint - Other - Other - HA4060-AL-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HA4060-AL
Part Number HA4060-AL
Manufacturer COILCRAFT
Pin Count 12
Part Category Transformer
Package Category Other
Footprint Name Other - HA4060-AL-2
Released Date Feb 6, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

HA4060-AL Details

Manufacturer Part Number:
HA4060-AL
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
CHIP
ECCN Code:
EAR99
Manufacturer:
Coilcraft Inc
YTEOL:
6.55
Additional Feature:
HEIGHT DIM INCLUDE TERMINALS ALSO
Height:
14 mm
Input Voltage-Max:
377 V
Input Voltage-Min:
120 V
Length:
26.75 mm
Mounting Feature:
SURFACE MOUNT
Number of Primary Winding:
2
Number of Secondary Winding:
2
Operating Frequency-Max:
100 kHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Voltage 1:
500 V
Packing Method:
TRAY
Primary Inductance:
300 µH
Surface Mount:
YES
Terminal Finish:
Tin/Silver - Tin - with Nickel barrier
Transformer Type:
SMPS TRANSFORMER
Width:
26 mm

HA4060-AL Frequently Asked Questions (FAQs)

Coilcraft provides a recommended PCB land pattern in their application notes, which can be found on their website. The recommended land pattern is also available in the Coilcraft Library for Eagle and other PCB design software.
The HA4060-AL has a maximum operating temperature of 125°C. To ensure reliable operation, it's essential to consider thermal management in your design. This includes providing adequate airflow, using thermal vias, and keeping the component away from heat sources.
The SRF of the HA4060-AL is not explicitly stated in the datasheet. However, Coilcraft provides an SRF calculator on their website, which can be used to estimate the SRF based on the inductor's characteristics.
The HA4060-AL is a surface-mount device and can be susceptible to vibration. However, Coilcraft's HA series inductors are designed to meet the vibration requirements of various industries, including automotive and industrial applications. It's recommended to consult with Coilcraft's application engineers to determine the suitability of the HA4060-AL for your specific vibration environment.
The HA4060-AL is designed to meet general EMI requirements, but specific EMI requirements may vary depending on the application. It's recommended to consult with Coilcraft's application engineers to determine the suitability of the HA4060-AL for your specific EMI requirements and to discuss potential custom solutions.

Trust Checks

Expert Contribution

System Verified

Community Approved

HA4060-AL Overview

Use the download button to access the HA4060-AL schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like HA406, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
