HA456CMZ - Renesas Electronics

HA456CMZ Details

• Manufacturer Part Number:

  HA456CMZ

• Brand Name:

  Renesas

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  PLCC

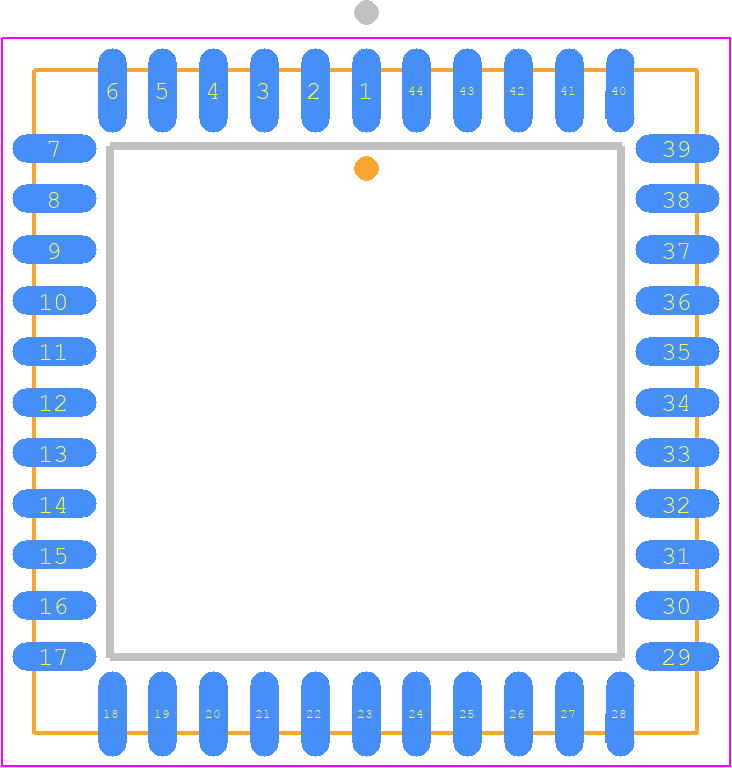

• Package Description:

  LCC-44

• Pin Count:

  44

• Manufacturer Package Code:

  N44.65

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2017-11-14

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Analog IC - Other Type:

  CROSS POINT SWITCH

• JESD-30 Code:

  S-PQCC-J44

• JESD-609 Code:

  e3

• Length:

  16.585 mm

• Neg Supply Voltage-Max (Vsup):

  -5.5 V

• Neg Supply Voltage-Min (Vsup):

  -4.5 V

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Normal Position:

  NO/NC

• Number of Channels:

  8

• Number of Functions:

  1

• Number of Terminals:

  44

• Off-state Isolation-Nom:

  70 dB

• Operating Temperature-Max:

  70 °C

• Output:

  COMMON OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC44,.7SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Seated Height-Max:

  4.57 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Width:

  16.585 mm
