HA9P2556-9Z - Renesas Electronics

Description: The HA-2556 is a monolithic, High-Speed, four quadrant, analog multiplier constructed in the Intersil Dielectrically Isolated High Frequency Process. The voltage output simplifies many designs by eliminating the current-to-voltage conversion stage required for current output multipliers. The HA-2556 provides a 450V/µs slew rate and maintains 52MHz and 57MHz bandwidths for the X and Y channels respectively, making it an ideal part for use in video systems. The suitability for precision video applications is

Download HA9P2556-9Z Model

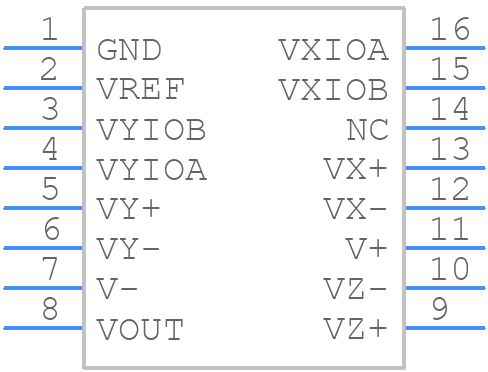

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HA9P2556-9Z - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M16.3 (JEDEC MS-013-AA ISSUE C)
click to zoom
3D Models
HA9P2556-9Z - Renesas Electronics  - 3D model - Small Outline Packages - M16.3 (JEDEC MS-013-AA ISSUE C)
click to zoom

HA9P2556-9Z Details

  • Manufacturer Part Number:

    HA9P2556-9Z

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOICW

  • Pin Count:

    16

  • Manufacturer Package Code:

    M16.3

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2017-09-18

  • Manufacturer:

    Renesas Electronics Corporation

  • Additional Feature:

    FOR X CHANNEL BANDWIDTH 52MHZ

  • Analog IC - Other Type:

    ANALOG MULTIPLIER OR DIVIDER

  • Bandwidth-Nom:

    57 MHz

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -15 V

  • Neg Supply Voltage-Min (Vsup):

    -12 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Negative Input Voltage-Max:

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Positive Input Voltage-Max:

    5 V

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    22 mA

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    12 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm
