HAF-10L footprint, schematic symbol and 3D model by TDK Lambda

Symbol

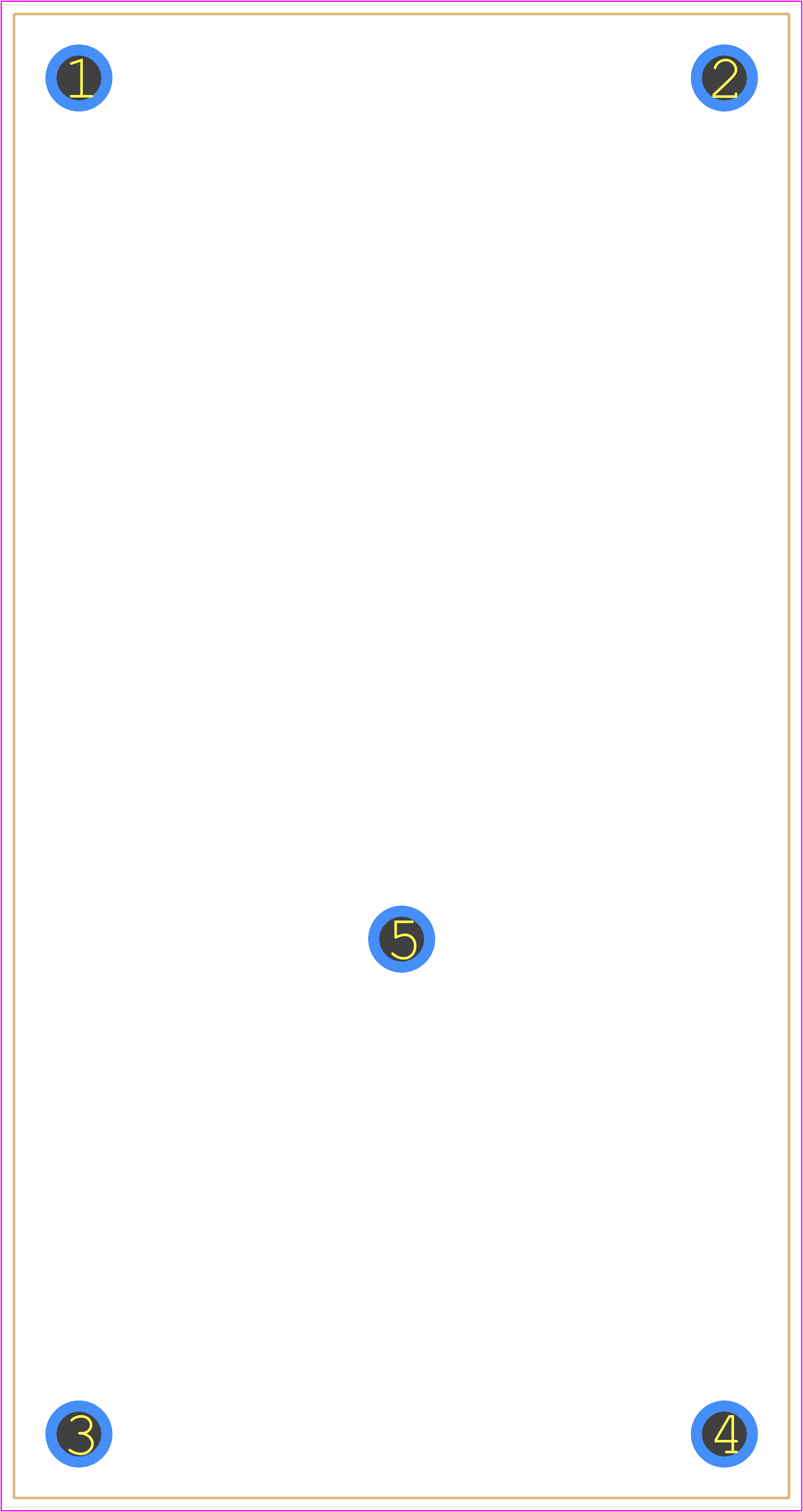

PCB Footprints

3D Models

HAF-10L Details

The maximum operating temperature range for the HAF-10L is -20°C to +71°C, with derating above 50°C.
Yes, the HAF-10L is designed to withstand high-vibration environments, with a vibration test specification of 10-2000Hz, 2G acceleration.
The recommended input fuse rating for the HAF-10L is 2A slow-blow type, but this may vary depending on the specific application and system requirements.
No, the HAF-10L is not designed to be paralleled for higher power output. Each unit should be used as a standalone power supply.
The MTBF rating for the HAF-10L is approximately 550,000 hours at 25°C, calculated according to MIL-HDBK-217F.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the HAF-10L schematic symbol, PCB footprint, and 3D model.
