Part Image

HAL3727DJ-A - TDK

Description: Board Mount Hall Effect / Magnetic Sensors Robust Programmable 2D Position Sensor, Bx and Bz, Analog Output

Download HAL3727DJ-A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

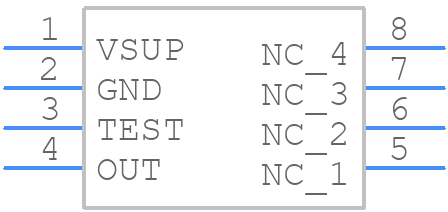

HAL3727DJ-A - TDK - PCB symbol
click to zoom
PCB Footprints
HAL3727DJ-A - TDK PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8
click to zoom
3D Models
HAL3727DJ-A - TDK - 3D model - Small Outline Packages - SOIC-8
click to zoom

HAL3727DJ-A Details

  • Manufacturer Part Number:

    HAL3727DJ-A

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Manufacturer:

    TDK Corporation

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.65 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    -1.2-1.2mA

  • Output Type:

    CURRENT OUTPUT

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    ROTARY POSITION SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

HAL3727DJ-A Frequently Asked Questions (FAQs)

  • TDK provides a recommended PCB layout in their application notes, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure reliable operation.
  • The HAL3727DJ-A has a thermal pad on the bottom, which should be connected to a thermal ground plane on the PCB. Additionally, ensure good airflow around the device and consider using a heat sink if operating in high-temperature environments.
  • Although the datasheet specifies a recommended operating voltage range, the absolute maximum rating for the VCC pin is 6.5V. Exceeding this voltage may damage the device.
  • TDK provides a troubleshooting guide in their application notes, which covers common issues such as noise, oscillation, and output voltage errors. Additionally, use oscilloscopes and logic analyzers to debug the device's behavior.
  • Yes, the HAL3727DJ-A is sensitive to electromagnetic interference (EMI). Ensure proper shielding, use of EMI filters, and follow good PCB design practices to minimize EMI effects.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HAL3727DJ-A Overview

Use the download button to access the HAL3727DJ-A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HAL37, or try a keyword search, such as Rotary Position Sensors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
