LEM Holdings SSA recommends a 4-layer PCB with a solid ground plane, and a separate layer for the high-frequency signals. The device should be placed near the edge of the board to minimize noise and ensure good thermal dissipation.
To ensure accurate current measurement, it's essential to follow the recommended PCB layout, use a low-impedance current path, and minimize the distance between the current conductor and the device. Additionally, the device should be calibrated according to the datasheet instructions.
The HASS200-S can operate within a temperature range of -40°C to 125°C, but the accuracy and linearity of the device may be affected at extreme temperatures. It's recommended to operate the device within the specified temperature range for optimal performance.
Yes, the HASS200-S is designed to withstand high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
Common issues with the HASS200-S can be troubleshooted by checking the PCB layout, ensuring proper device calibration, and verifying the input signal quality. Additionally, checking for electromagnetic interference (EMI) and radio-frequency interference (RFI) can help identify and resolve issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HASS200-S Overview

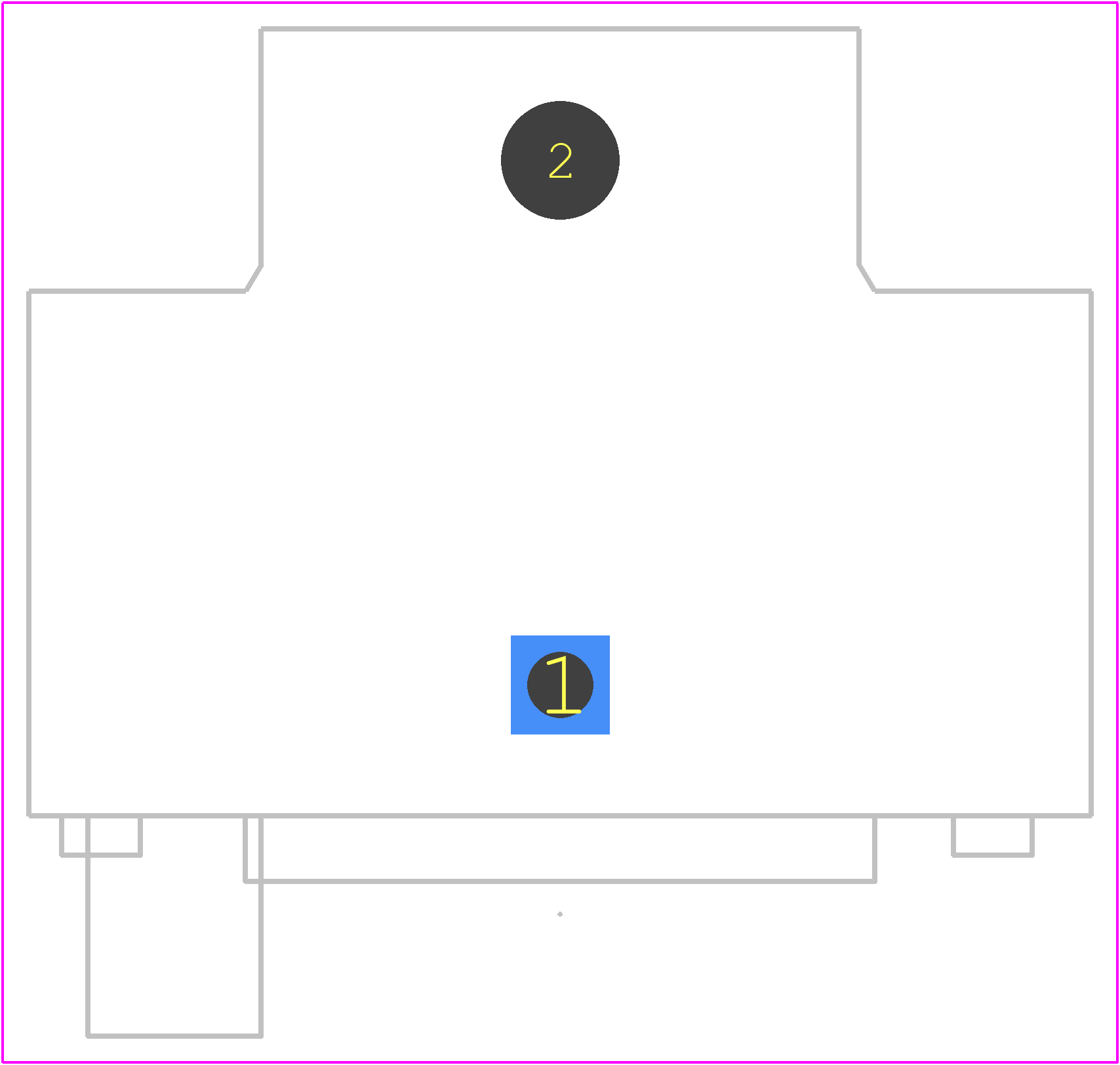

Use the download button to access the HASS200-S schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HASS2,
or try a keyword search, such as Other Sensors/Transducers
