HAT901CSDC12-1 - HASCO

Description: Electromechanical Relay 12VDC 155Ohm 30ADC/40(NO)/30(NC)AAC SPDT (31.9x26.9x20.4)mm THT Heavy Duty Relay

Download HAT901CSDC12-1 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this HAT901CSDC12-1 model

Email notifications will be applied after download.

Send part feedback

Symbol

HAT901CSDC12-1 - HASCO - PCB symbol

PCB Footprints

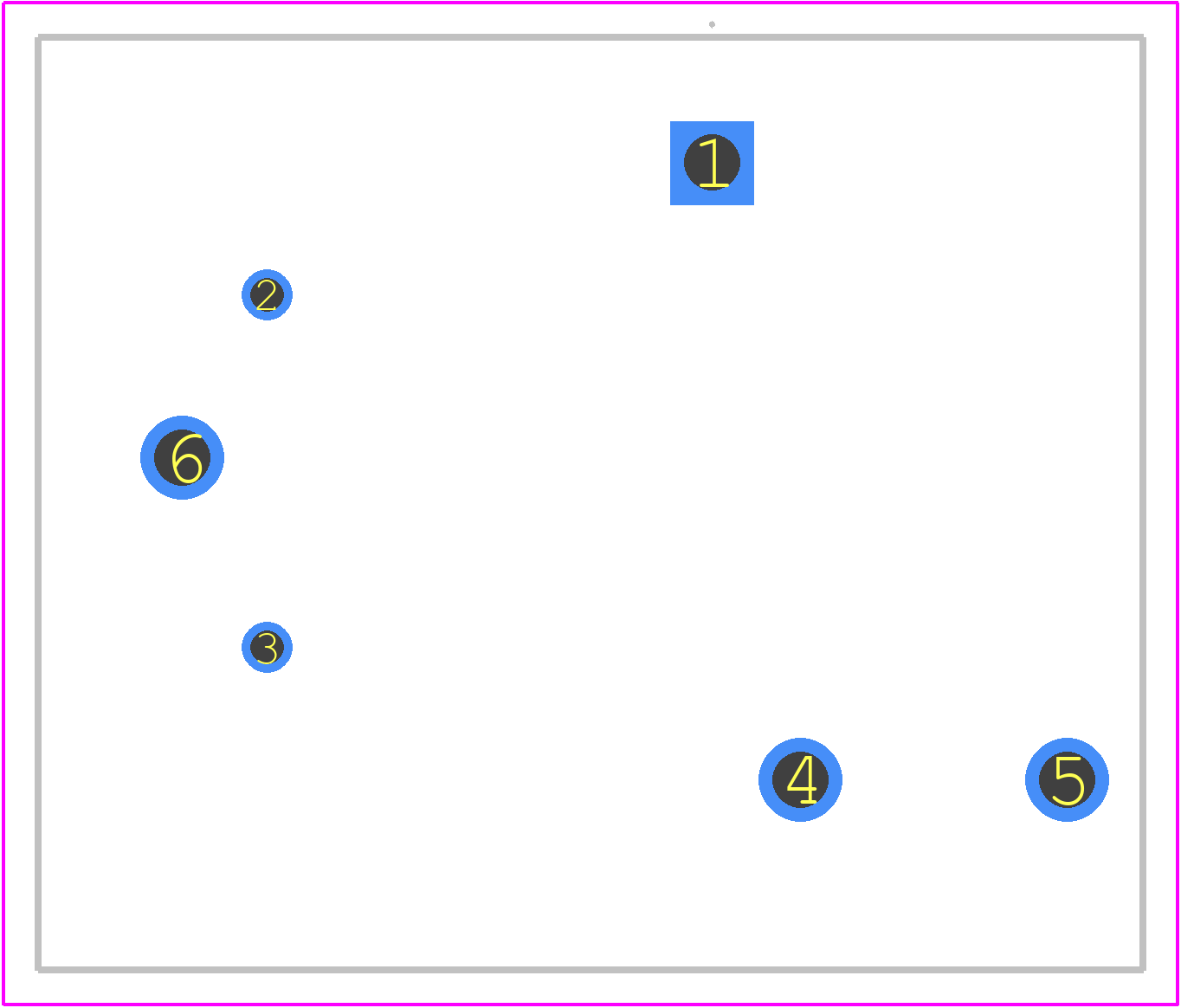

HAT901CSDC12-1 - HASCO PCB footprint - Other - Other - HAT901CSDC12-1-2

3D Models

HAT901CSDC12-1 - HASCO - 3D model - Other - HAT901CSDC12-1-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for HAT901CSDC12-1
Part Number HAT901CSDC12-1
Manufacturer HASCO
Pin Count 6
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - HAT901CSDC12-1-2
Released Date Dec 21, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

HAT901CSDC12-1 Details

Manufacturer Part Number:
HAT901CSDC12-1
Manufacturer:
Hasco Relays and Electronics International Corp
