HAT902CSDC12 - HASCO

Description: Electromechanical Relay 12VDC 155Ohm 30ADC/40(NO)/30(NC)AAC SPDT (32.53x27.43x28.21)mm THT Heavy Duty Relay

Download HAT902CSDC12 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this HAT902CSDC12 model

Email notifications will be applied after download.

Send part feedback

Symbol

HAT902CSDC12 - HASCO - PCB symbol

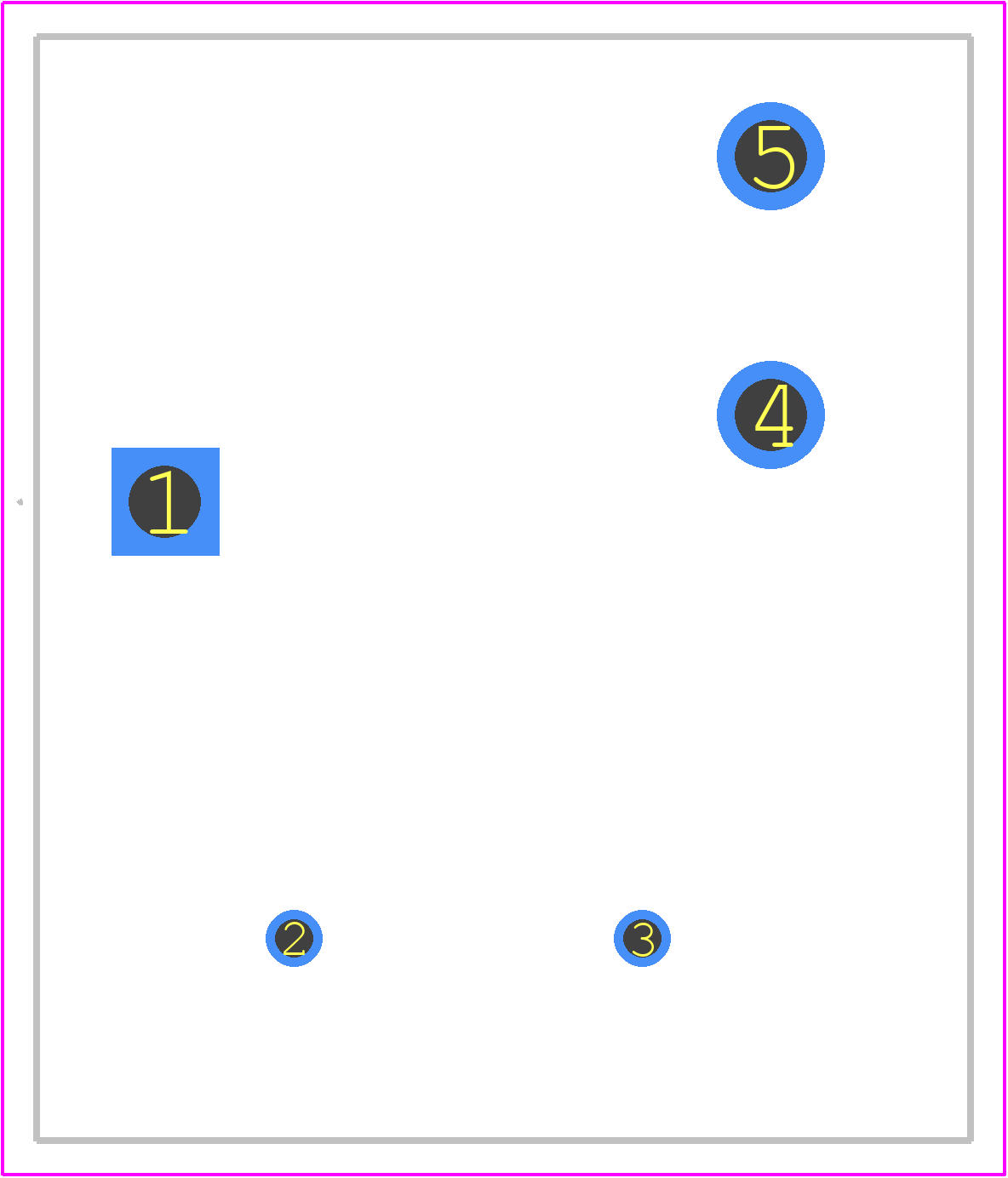

PCB Footprints

HAT902CSDC12 - HASCO PCB footprint - Other - Other - HAT902CSDC12-6

3D Models

HAT902CSDC12 - HASCO - 3D model - Other - HAT902CSDC12-6

Datasheet Download Datasheet
Stock & Prices Price & Stock for HAT902CSDC12
Part Number HAT902CSDC12
Manufacturer HASCO
Pin Count 5
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - HAT902CSDC12-6
Released Date Jul 25, 2024
Last Modified Date Jul 25, 2024 9:41 AM UTC
Pinout / Pin List Click Here (Member Only)

HAT902CSDC12 Details

Manufacturer Part Number:
HAT902CSDC12
Manufacturer:
Hasco Relays and Electronics International Corp

Trust Checks

Community Provided

System Verified

Community Approved

HAT902CSDC12 Overview

Use the download button to access the HAT902CSDC12 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like HAT90, or try a keyword search, such as Other Relays
