HB1500KFZRE - TE Connectivity

Description: Body Features: Lead Type Radial-Leaded | Configuration Features: Number of Resistors 1 | Dimensions: Passive Component Dimensions 26.5 x 3 MM | Electrical Characteristics: Operating Voltage 7500 V | Passive Component Tolerance 1 PCT | Resistance Value 500K OHM | Power Rating 2 WATT | Resistance Class 1kΩ – 1MΩ | Packaging Features: Packaging Method Loose Piece - Tray | Product Type Features: Resistor Type High Value/High Voltage Resistor | Element Type Thick Film | Termination Features: Number of Termin

Download HB1500KFZRE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HB1500KFZRE - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

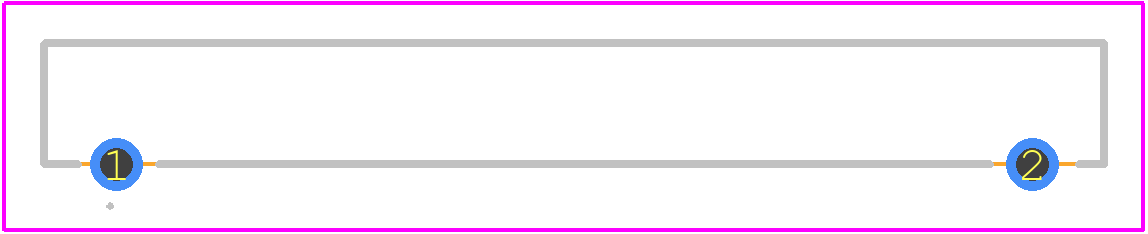

HB1500KFZRE - TE Connectivity PCB footprint - Other - Other - HB1500KFZRE-4
click to zoom
3D Models
HB1500KFZRE - TE Connectivity - 3D model - Other - HB1500KFZRE-4
click to zoom

HB1500KFZRE Details

  • Manufacturer Part Number:

    HB1500KFZRE

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.90

  • Factory Lead Time:

    27 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Packing Method:

    BULK; TRAY

  • Physical Dimension:

    26.5mm x 3mm

  • Rated Power Dissipation (P):

    2 W

  • Resistance:

    500000 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Shape:

    WIRE

  • Tolerance:

    1%

  • Working Voltage:

    7500 V
