HB1500MFZRE - TE Connectivity

Description: Body Features: Lead Type Radial-Leaded | Configuration Features: Number of Resistors 1 | Dimensions: Passive Component Dimensions 26.5 x 3 MM | Electrical Characteristics: Passive Component Tolerance 1 PCT | Operating Voltage 7500 V | Resistance Class 1MΩ – 1GΩ | Resistance Value 500M OHM | Power Rating 2 WATT | Packaging Features: Packaging Method Loose Piece - Tray | Product Type Features: Resistor Type High Value/High Voltage Resistor | Element Type Thick Film | Termination Features: Number of Termin

Download HB1500MFZRE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HB1500MFZRE - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

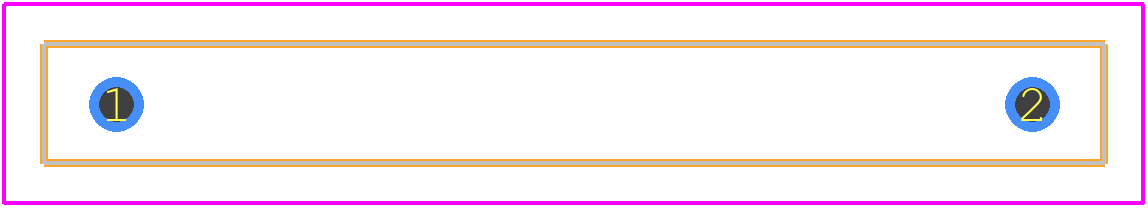

HB1500MFZRE - TE Connectivity PCB footprint - Other - Other - HB1500MFZRE-1
click to zoom
3D Models
HB1500MFZRE - TE Connectivity - 3D model - Other - HB1500MFZRE-1
click to zoom

HB1500MFZRE Details

  • Manufacturer Part Number:

    HB1500MFZRE

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.90

  • Factory Lead Time:

    27 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Packing Method:

    BULK; TRAY

  • Physical Dimension:

    26.5mm x 3mm

  • Rated Power Dissipation (P):

    2 W

  • Resistance:

    500000000 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Shape:

    WIRE

  • Tolerance:

    1%

  • Working Voltage:

    7500 V

HB1500MFZRE Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5 Nm to 1.5 Nm (0.37 lbf-in to 1.06 lbf-in).
  • Yes, the HB1500MFZRE is designed to withstand high-vibration environments. It meets the IEC 61373 Category 1, Class B vibration standard.
  • Yes, the HB1500MFZRE is suitable for outdoor use. It has a IP67 rating, which means it can withstand exposure to dust and water immersion up to 1 meter for 30 minutes.
  • The maximum operating temperature range for the HB1500MFZRE is -40°C to 125°C (-40°F to 257°F).
  • Yes, the HB1500MFZRE is designed to operate in high-humidity environments. It meets the IEC 60068-2-30 humidity standard.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HB1500MFZRE Overview

Use the download button to access the HB1500MFZRE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HB150, or try a keyword search, such as Metal Glaze/Thick Film Resistors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
