HB150MFZRE - TE Connectivity

Description: Body Features: Lead Type Radial-Leaded | Configuration Features: Number of Resistors 1 | Dimensions: Passive Component Dimensions 26.5 x 3 MM | Electrical Characteristics: Power Rating 2 WATT | Operating Voltage 7500 V | Passive Component Tolerance 1 PCT | Resistance Value 50M OHM | Resistance Class 1MΩ – 1GΩ | Packaging Features: Packaging Method Loose Piece - Tray | Product Type Features: Element Type Thick Film | Resistor Type High Value/High Voltage Resistor | Termination Features: Number of Termina

Download HB150MFZRE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HB150MFZRE - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

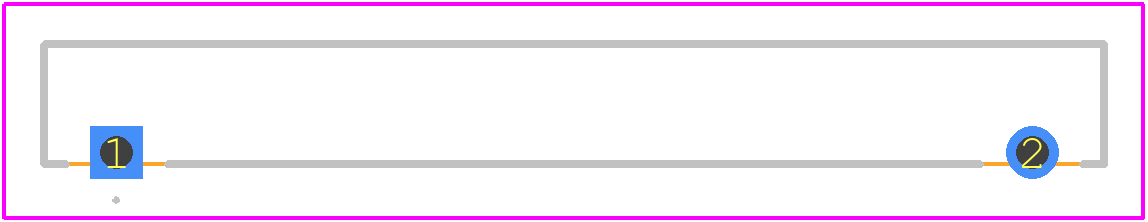

HB150MFZRE - TE Connectivity PCB footprint - Other - Other - HB150MFZRE-3
click to zoom
3D Models
HB150MFZRE - TE Connectivity - 3D model - Other - HB150MFZRE-3
click to zoom

HB150MFZRE Details

  • Manufacturer Part Number:

    HB150MFZRE

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.90

  • Factory Lead Time:

    27 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Packing Method:

    BULK; TRAY

  • Physical Dimension:

    26.5mm x 3mm

  • Rated Power Dissipation (P):

    2 W

  • Resistance:

    50000000 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Shape:

    WIRE

  • Tolerance:

    1%

  • Working Voltage:

    7500 V

HB150MFZRE Frequently Asked Questions (FAQs)

  • The recommended torque value for the HB150MFZRE connector is 0.5-1.5 Nm (4.4-13.3 in-lbs).
  • Yes, the HB150MFZRE connector is designed to withstand high-vibration environments and is suitable for applications such as automotive, industrial, and aerospace.
  • Yes, the HB150MFZRE connector is designed to operate in harsh environments, including temperatures ranging from -40°C to 125°C, and is resistant to moisture, dust, and chemicals.
  • The HB150MFZRE connector has a mating cycle life of 500 cycles minimum, making it suitable for applications where frequent mating and unmating is required.
  • Yes, the HB150MFZRE connector is designed to be compatible with other TE Connectivity products, including cables, connectors, and accessories.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HB150MFZRE Overview

Use the download button to access the HB150MFZRE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HB150, or try a keyword search, such as Metal Glaze/Thick Film Resistors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
