HB2E-DC12V - Panasonic

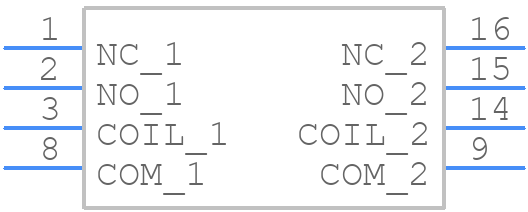

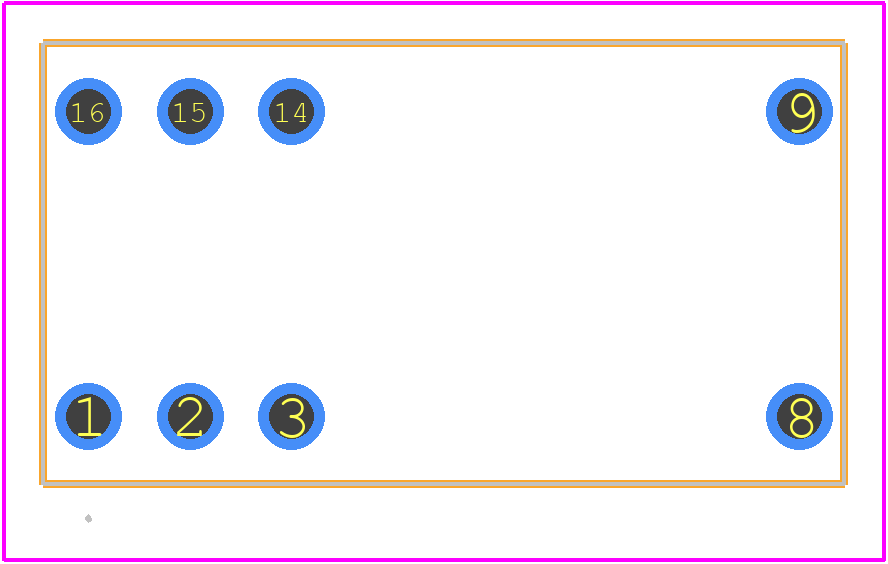

HB2E-DC12V Details

• Manufacturer Part Number:

  HB2E-DC12V

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.20

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  0

• Body Breadth:

  11 mm

• Body Height:

  16.3 mm

• Body Length or Diameter:

  20 mm

• Coil Current(DC)-Max:

  0.048 A

• Coil Operate Voltage(DC):

  9.6 V

• Coil Power:

  576 mW

• Coil Release Voltage(DC):

  1.2 V

• Coil Resistance:

  250 Ω

• Coil Voltage(DC)-Max:

  12 V

• Coil Voltage-Nom:

  12 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  125VA@125VAC

• Contact (AC) Max Rating R Load:

  1A@125VAC

• Contact Current(AC)-Max:

  1 A

• Contact Current(DC)-Max:

  2 A

• Contact (DC) Max Power Rating R Load:

  60W@30VDC

• Contact (DC) Max Rating R Load:

  2A@30VDC

• Contact Resistance:

  100 mΩ

• Contact Voltage(AC)-Max:

  125 V

• Contact Voltage(DC)-Max:

  30 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  200000 Cycle(s)

• End Contact Material:

  Silver Nickel

• End Contact Plating:

  GOLD

• Input Switching Control Type:

  Random

• Insulation Resistance:

  100000000 Ω

• Mounting Feature:

  THROUGH HOLE-STRAIGHT MOUNT

• Number of Terminals:

  8

• Operate Time:

  15 ms

• Operating Temperature-Max:

  50 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX

• Physical Dimension:

  20mm x 11mm x 16.3mm

• Reference Standard:

  CSA; UL

• Relay Action:

  MOMENTARY

• Relay Form:

  2 FORM C

• Relay Function:

  DPDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  8 ms

• Sealing:

  AMBER

• Surface Mount:

  NO

• Terminal Length:

  0.002999745999491999 inch

• Termination Type:

  SOLDER
