HB3006HLT - Yageo Group

Description: Ethernet & LAN Transformer, 100 Base-TX, 1 Port, 1:1, 350 µH, 1.5 kVrms, Surface Mount

Download HB3006HLT Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this HB3006HLT model

Email notifications will be applied after download.

Send part feedback

Symbol

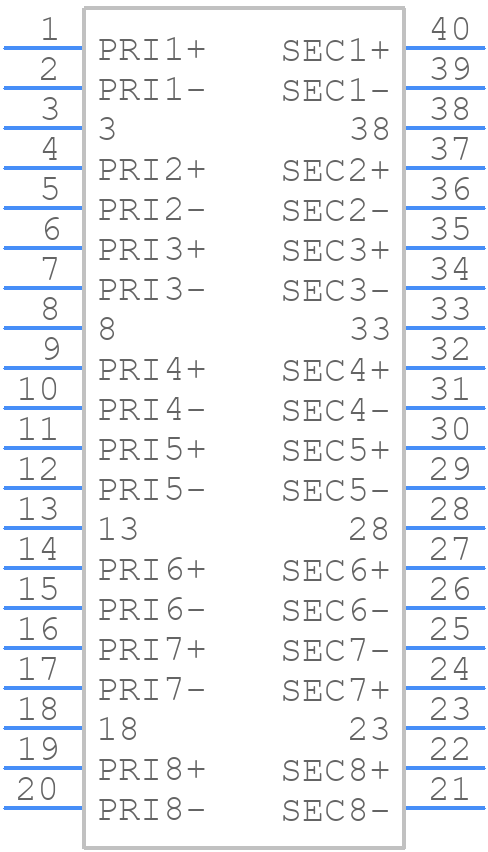

HB3006HLT - Yageo Group - PCB symbol

PCB Footprints

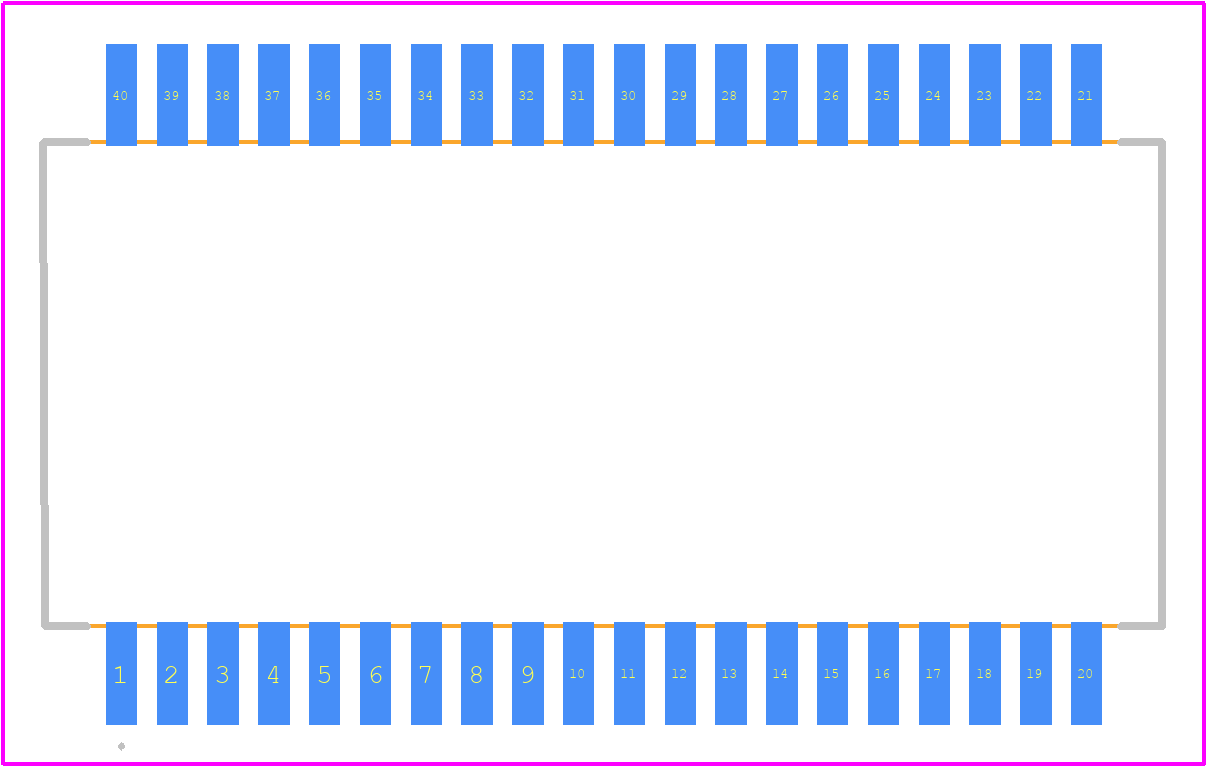

HB3006HLT - Yageo Group PCB footprint - Other - Other - 28.10 x 12.10 x 5.70mm

3D Models

HB3006HLT - Yageo Group - 3D model - Other - 28.10 x 12.10 x 5.70mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for HB3006HLT
Part Number HB3006HLT
Manufacturer Yageo Group
Pin Count 40
Part Category Transformer
Package Category Other
Footprint Name Other - 28.10 x 12.10 x 5.70mm
Released Date Dec 6, 2024
Last Modified Date Feb 4, 2026 2:20 PM UTC
Pinout / Pin List Click Here (Member Only)

HB3006HLT Details

Manufacturer Part Number:
HB3006HLT
