HB8014CSR - Galaxy

Description: -25C to +85C Galaxy Red 0.39 Inch 4 Digit Segment Display, Dimension: 71.8*25.3*8.00mm, Shape: Round

Download HB8014CSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

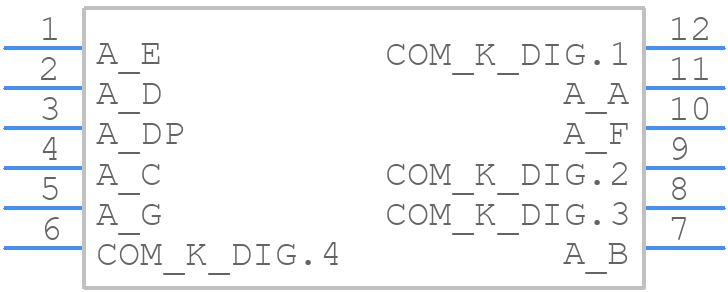

HB8014CSR - Galaxy - PCB symbol
click to zoom
PCB Footprints

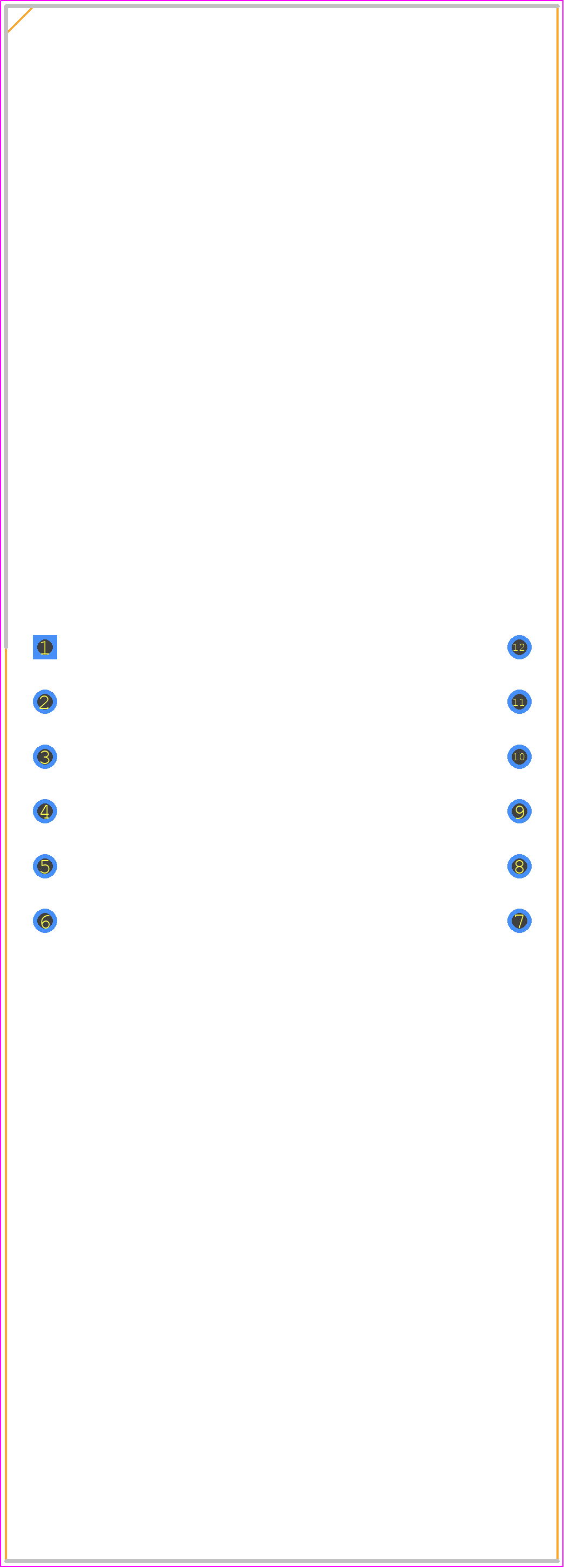

HB8014CSR - Galaxy PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 71.8mmx25.3mm
click to zoom

HB8014CSR Details

  • Manufacturer Part Number:

    HB8014CSR

  • Manufacturer:

    Galaxy Semi-Conductor Co Ltd

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HB8014CSR Overview

Use the download button to access the HB8014CSR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HB801, or try a keyword search, such as Other Fiber Optics
