HC55185CIMZ - Renesas Electronics

Description: The RSLIC-VoIP family of Ringing Subscriber Line Interface Circuits (RSLIC) supports analog Plain Old Telephone Service (POTS) in short and medium loop length, wireless and wireline applications. Ideally suited for remote subscriber units, this family of products offers flexibility to designers with high ringing voltage and low power consumption system requirements. The RSLIC-VoIP family operates to 100V which translates directly to the amount of ringing voltage supplied to the end subscriber. With the high

Download HC55185CIMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

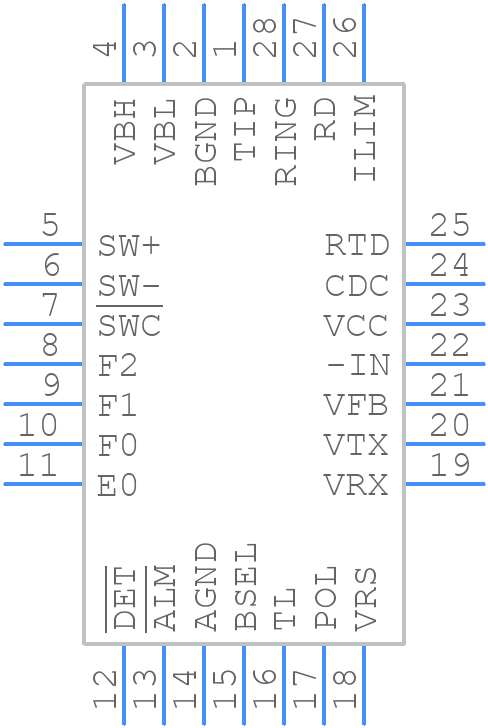

HC55185CIMZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

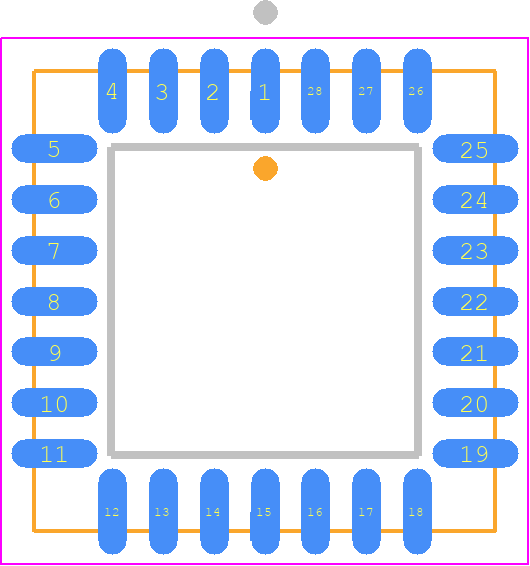

HC55185CIMZ - Renesas Electronics PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - N28.45
click to zoom

HC55185CIMZ Details

  • Manufacturer Part Number:

    HC55185CIMZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PLCC

  • Pin Count:

    28

  • Manufacturer Package Code:

    N28.45

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-10-20

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    245

  • Telecom IC Type:

    SLIC

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

HC55185CIMZ Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for HC55185CIMZ is -40°C to +85°C.
  • The POR circuitry in HC55185CIMZ is designed to reset the device during power-up. To handle it, ensure that the power supply voltage rises monotonically and reaches the minimum operating voltage (VDD) within the specified time (typically 10ms).
  • The internal voltage regulator in HC55185CIMZ generates a stable internal voltage (VINT) from the external power supply voltage (VDD), which is used to power the internal circuitry.
  • The clock source for HC55185CIMZ can be configured using the Clock Control Register (CCR). You can select between an external clock source, internal oscillator, or PLL clock source.
  • The maximum clock frequency supported by HC55185CIMZ is 20 MHz.
