Part Image

HC55185DIMZ - Renesas Electronics

Description: The RSLIC-VoIP family of Ringing Subscriber Line Interface Circuits (RSLIC) supports analog Plain Old Telephone Service (POTS) in short and medium loop length, wireless and wireline applications. Ideally suited for remote subscriber units, this family of products offers flexibility to designers with high ringing voltage and low power consumption system requirements. The RSLIC-VoIP family operates to 100V which translates directly to the amount of ringing voltage supplied to the end subscriber. With the high

Download HC55185DIMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

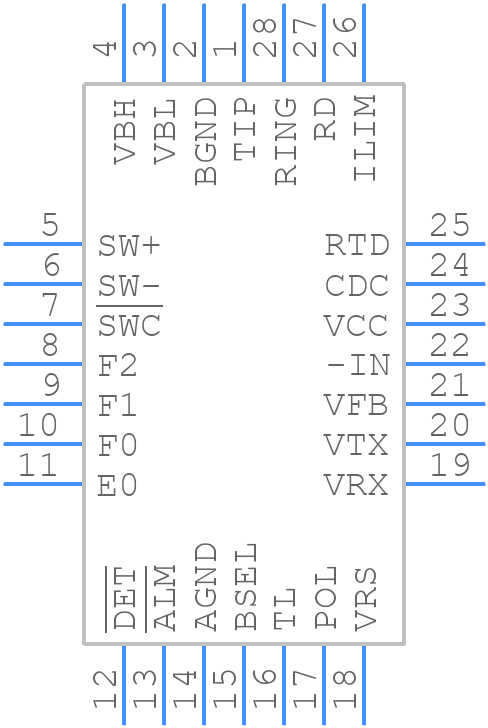

HC55185DIMZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

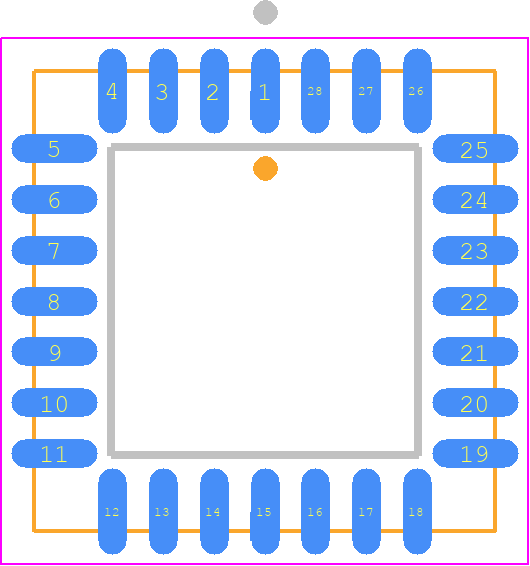

HC55185DIMZ - Renesas Electronics PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - N28.45
click to zoom

HC55185DIMZ Details

  • Manufacturer Part Number:

    HC55185DIMZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PLCC

  • Pin Count:

    28

  • Manufacturer Package Code:

    N28.45

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-10-20

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    245

  • Telecom IC Type:

    SLIC

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

HC55185DIMZ Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for HC55185DIMZ is -40°C to +85°C.
  • The POR circuitry in HC55185DIMZ is designed to reset the device during power-up. To handle it, ensure that the power supply voltage rises monotonically and reaches the minimum operating voltage (VDD) within the specified time (typically 10ms).
  • The internal voltage regulator in HC55185DIMZ generates a stable internal voltage (VINT) from the external power supply voltage (VDD), which is used to power the internal circuitry.
  • The clock source for HC55185DIMZ can be configured using the Clock Control Register (CCR). You can select between the internal oscillator, external clock, or external crystal oscillator as the clock source.
  • The maximum frequency of operation for HC55185DIMZ is 20 MHz, but it can be overclocked up to 24 MHz with reduced voltage and temperature ranges.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HC55185DIMZ Overview

Use the download button to access the HC55185DIMZ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HC551, or try a keyword search, such as Analog Transmission Interfaces

Parts related to HC55185DIMZ

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

HC55185DIMZ Alternates

Showing results

Image Part Number Model
Part Image HC55185DIM96 Rochester Electronics LLC

SLIC, Bipolar, PQCC28
Part Image HC55185DIMZ Intersil Corporation

SLIC, 2-4 Conversion, Bipolar, PQCC28
Part Image HC55185DIMZ96 Intersil Corporation

SLIC, 2-4 Conversion, Bipolar, PQCC28
Part Image HC55185DIM Intersil Corporation

SLIC, 2-4 Conversion, Bipolar, PQCC28
Part Image HC55185DIM96 Intersil Corporation

SLIC, 2-4 Conversion, Bipolar, PQCC28
For a full list of alternate parts for HC55185DIMZ, check out Findchips.com
