Description:The RSLIC-VoIP family of Ringing Subscriber Line Interface Circuits (RSLIC) supports analog Plain Old Telephone Service (POTS) in short and medium loop length, wireless and wireline applications. Ideally suited for remote subscriber units, this family of products offers flexibility to designers with high ringing voltage and low power consumption system requirements. The RSLIC-VoIP family operates to 100V which translates directly to the amount of ringing voltage supplied to the end subscriber. With the high
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes recommendations for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
The HC55185GIMZ has a built-in overcurrent protection feature, but it requires external components to implement. Renesas provides a reference design and calculation guidelines in their datasheet and application notes to help engineers design an overcurrent protection circuit.
The recommended input capacitor value and type depend on the specific application and operating conditions. Renesas provides general guidelines in their datasheet, but engineers should consult with their local Renesas support team or refer to the application notes for more specific recommendations.
Renesas provides a troubleshooting guide in their application notes, which covers common issues and their possible causes. Engineers can also consult with Renesas' technical support team for further assistance.
Renesas provides thermal design guidelines and recommendations for high-temperature environments in their application notes. Engineers should consider factors such as thermal resistance, junction temperature, and airflow when designing their system.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HC55185GIMZ Overview

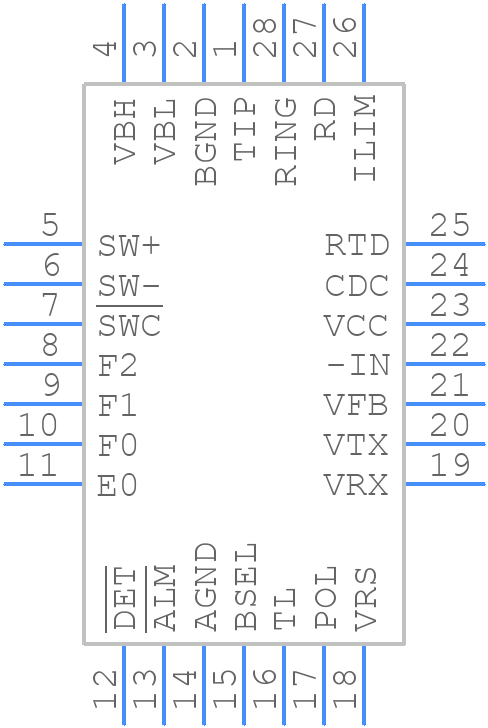

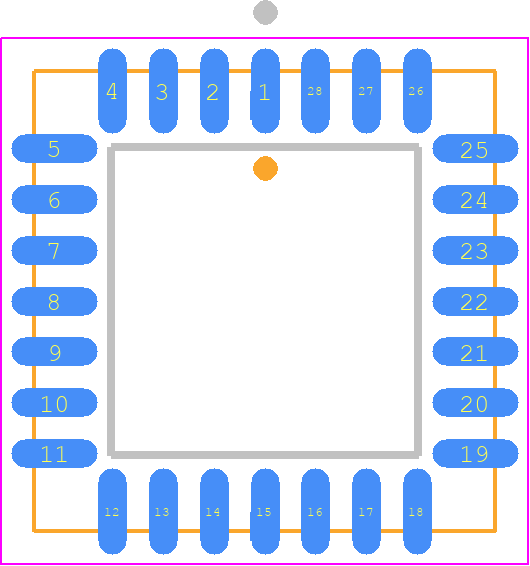

Use the download button to access the HC55185GIMZ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HC551,
or try a keyword search, such as Analog Transmission Interfaces
