HCC40109BDT footprint, schematic symbol and 3D model by STMicroelectronics

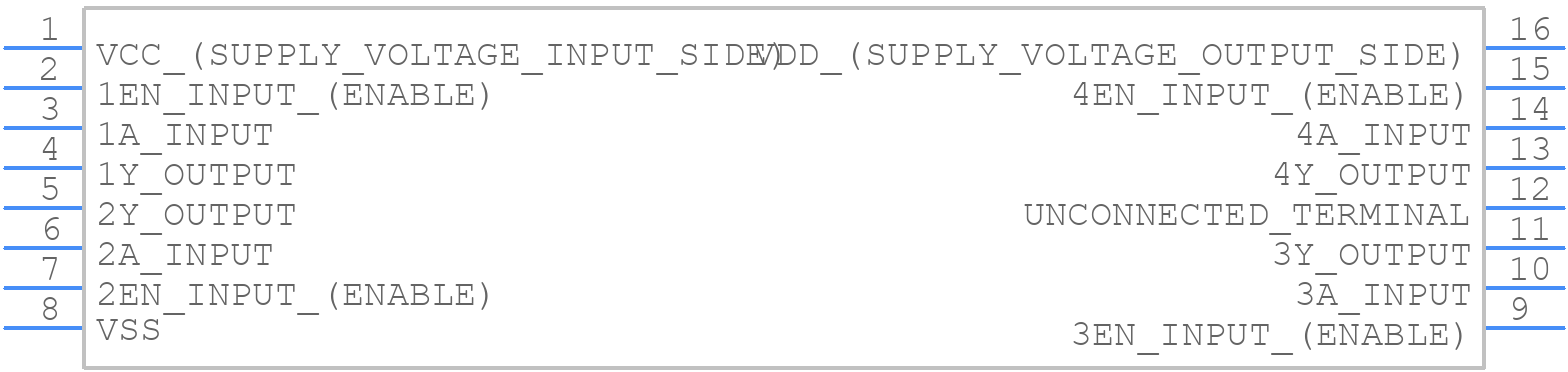

Symbol

click to zoom

PCB Footprints

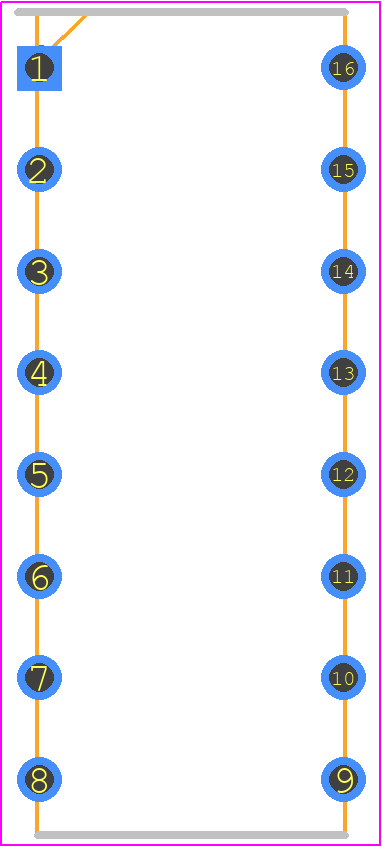

HCC40109BDT - STMicroelectronics PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - dip16a

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HCC40109BDT
Part Number HCC40109BDT
Manufacturer STMicroelectronics
Pin Count 16
Part Category Integrated Circuit
Package Category Ceramic Dual-In-Line Packages
Footprint Name Ceramic Dual-In-Line Packages - dip16a
Released Date Jul 6, 2023
Last Modified Date Jul 6, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

HCC40109BDT Details

Manufacturer Part Number:
HCC40109BDT
Part Life Cycle Code:
Active
Package Description:
DIL-16
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
STMicroelectronics

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

HCC40109BDT Overview

Use the download button to access the HCC40109BDT schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like HCC40, or try a keyword search, such as Level Translators

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
