HCC4046BDT footprint, schematic symbol and 3D model by STMicroelectronics

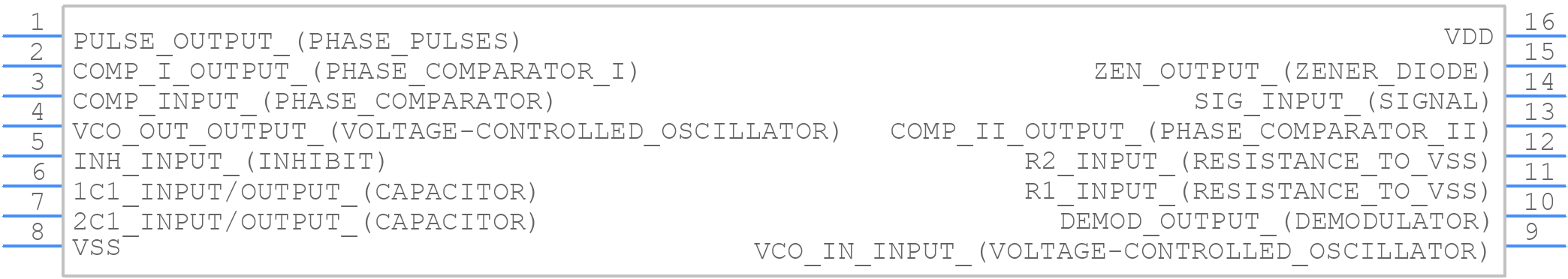

Symbol

click to zoom

PCB Footprints

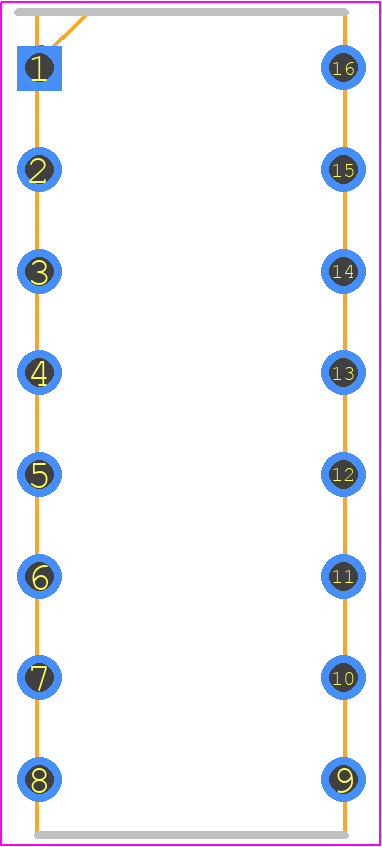

HCC4046BDT - STMicroelectronics PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - DIL16 FP

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HCC4046BDT
Part Number HCC4046BDT
Manufacturer STMicroelectronics
Pin Count 16
Part Category Integrated Circuit
Package Category Ceramic Dual-In-Line Packages
Footprint Name Ceramic Dual-In-Line Packages - DIL16 FP
Released Date Jul 5, 2023
Last Modified Date Jul 5, 2023 11:16 AM UTC
Pinout / Pin List Click Here (Member Only)

HCC4046BDT Details

Manufacturer Part Number:
HCC4046BDT
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Active
Manufacturer Package Code:
DIL16 FP
HTS Code:
8542.39.00.60
Manufacturer:
STMicroelectronics
YTEOL:
6
Analog IC - Other Type:
PHASE LOCKED LOOP
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

HCC4046BDT Overview

Use the download button to access the HCC4046BDT schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like HCC40, or try a keyword search, such as PLL or Frequency Synthesis Circuits
