HCC4052BDG footprint, schematic symbol and 3D model by STMicroelectronics

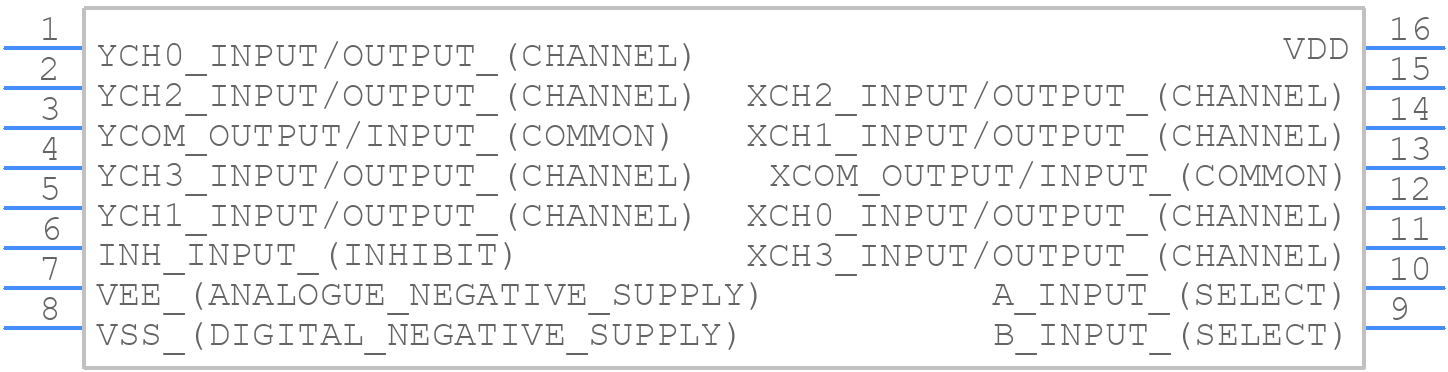

Symbol

click to zoom

PCB Footprints

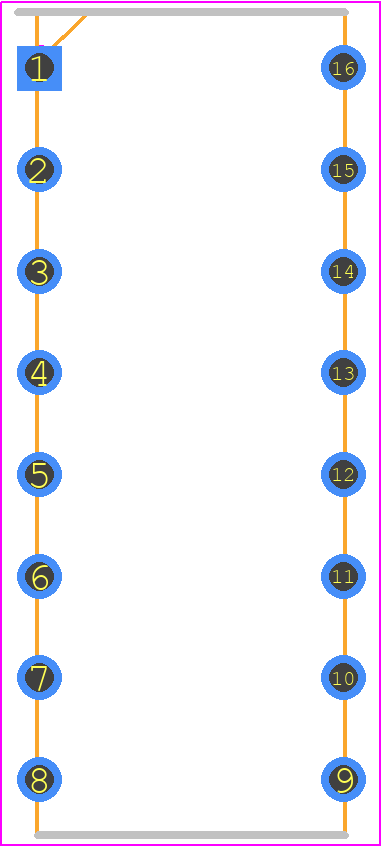

HCC4052BDG - STMicroelectronics PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - DIL-16-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HCC4052BDG
Part Number HCC4052BDG
Manufacturer STMicroelectronics
Pin Count 16
Part Category Integrated Circuit
Package Category Ceramic Dual-In-Line Packages
Footprint Name Ceramic Dual-In-Line Packages - DIL-16-2
Released Date Jul 1, 2023
Last Modified Date Jan 8, 2026 2:31 PM UTC
Pinout / Pin List Click Here (Member Only)

HCC4052BDG Details

Manufacturer Part Number:
HCC4052BDG
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DIL-16
Manufacturer Package Code:
DIL16 FP
Country Of Origin:
France
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
STMicroelectronics
YTEOL:
6
Analog IC - Other Type:
DIFFERENTIAL MULTIPLEXER
JESD-30 Code:
R-CDIP-T16
Length:
20.32 mm
Number of Channels:
4
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Output:
COMMON OUTPUT
Package Body Material:
CERAMIC, METAL-SEALED COFIRED
Package Code:
DIP
Package Equivalence Code:
DIP16,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
3.83 mm
Supply Voltage-Max (Vsup):
15 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
NO
Technology:
CMOS
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Dose:
100k Rad(Si) V
Width:
7.62 mm
