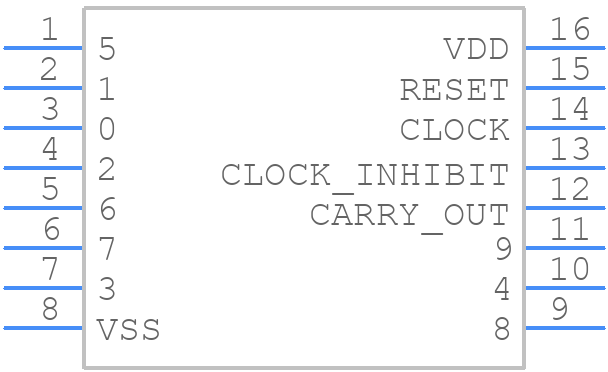

HCF4017BE - STMicroelectronics

HCF4017BE Details

• Manufacturer Part Number:

  HCF4017BE

• Part Life Cycle Code:

  Obsolete

• Package Description:

  DIP-16

• HTS Code:

  8542.39.00.60

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Count Direction:

  UP

• Family:

  4000/14000/40000

• JESD-30 Code:

  R-PDIP-T16

• JESD-609 Code:

  e0

• Length:

  20 mm

• Load Capacitance (CL):

  50 pF

• Load/Preset Input:

  NO

• Logic IC Type:

  DECADE COUNTER

• Max Frequency@Nom-Sup:

  2500000 Hz

• Max I(ol):

  0.0036 A

• Mode of Operation:

  SYNCHRONOUS

• Number of Bits:

  10

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Prop. Delay@Nom-Sup:

  650 ns

• Propagation Delay (tpd):

  650 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.1 mm

• Supply Voltage-Max (Vsup):

  15 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Trigger Type:

  POSITIVE EDGE

• Width:

  7.62 mm

• fmax-Min:

  5.5 MHz
