The recommended PCB layout and land pattern for the HCJT1-802SK can be found in the Halo Electronics Inc. application note AN-001, which provides detailed guidelines for optimal performance and thermal management.
To ensure reliable operation in high-temperature environments, it is recommended to follow the thermal management guidelines provided in the datasheet, including the use of a heat sink and thermal interface material. Additionally, the device should be operated within the specified temperature range and derating should be applied for temperatures above 85°C.
The maximum allowable voltage for the HCJT1-802SK is 1.5 times the maximum rated voltage, which is 80V. However, it is recommended to operate the device within the specified voltage range to ensure reliable operation and to prevent damage.
The HCJT1-802SK has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during assembly and testing to prevent damage. This includes using ESD-safe materials, grounding straps, and ionizers.
The HCJT1-802SK should be stored in a dry, cool place away from direct sunlight and moisture. The device should be handled with care to prevent mechanical damage, and it is recommended to use anti-static packaging and materials to prevent ESD damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCJT1-802SK Overview

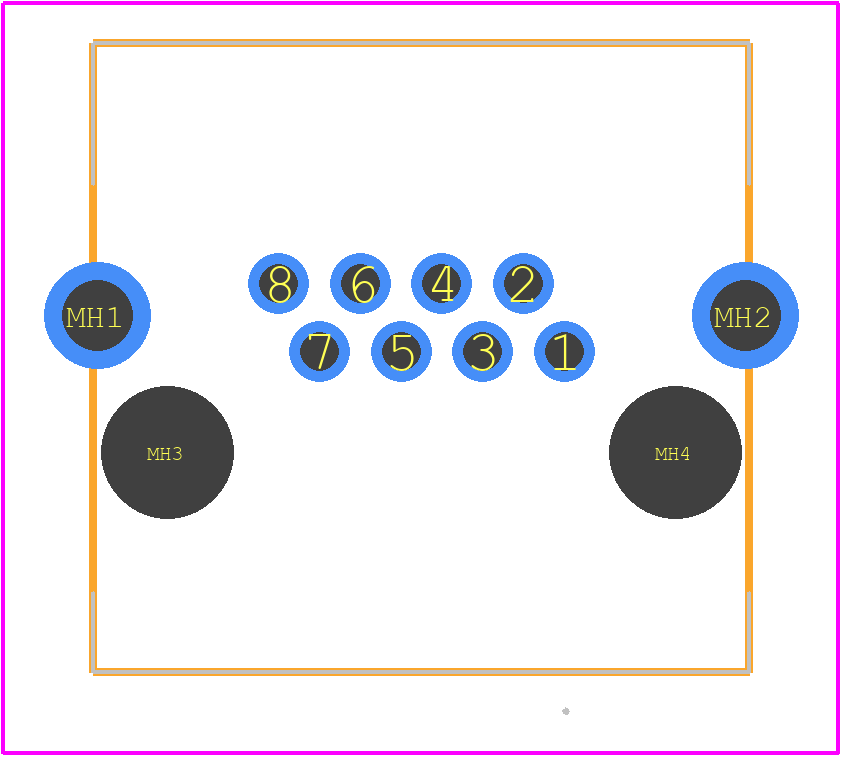

Use the download button to access the HCJT1-802SK schematic symbol, PCB footprint, and 3D model.
