The recommended PCB layout and land pattern can be found in the Halo Electronics Inc. application note AN-001, which provides detailed guidelines for optimal board design and assembly.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range (−40°C to +125°C) and consider thermal management techniques such as heat sinking, thermal interface materials, and airflow management.
The HCJT2-805SK has built-in ESD protection, but it's still important to follow standard ESD handling precautions, such as using an ESD wrist strap, mat, or workstation, and avoiding direct contact with the device's pins.
Yes, the HCJT2-805SK is designed to withstand vibrations and shocks, but it's essential to follow the recommended mounting and assembly guidelines to ensure reliable operation in such environments.
The recommended soldering and rework conditions can be found in the Halo Electronics Inc. application note AN-002, which provides detailed guidelines for soldering, desoldering, and rework procedures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCJT2-805SK Overview

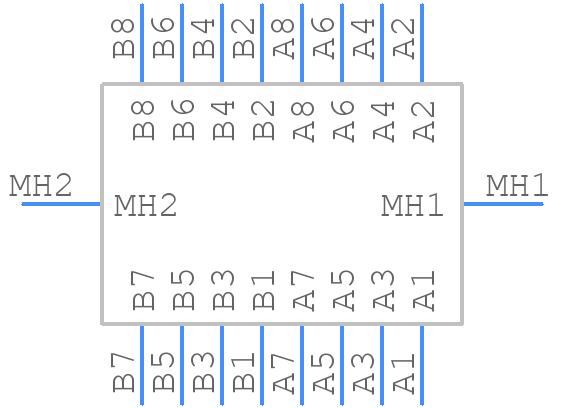

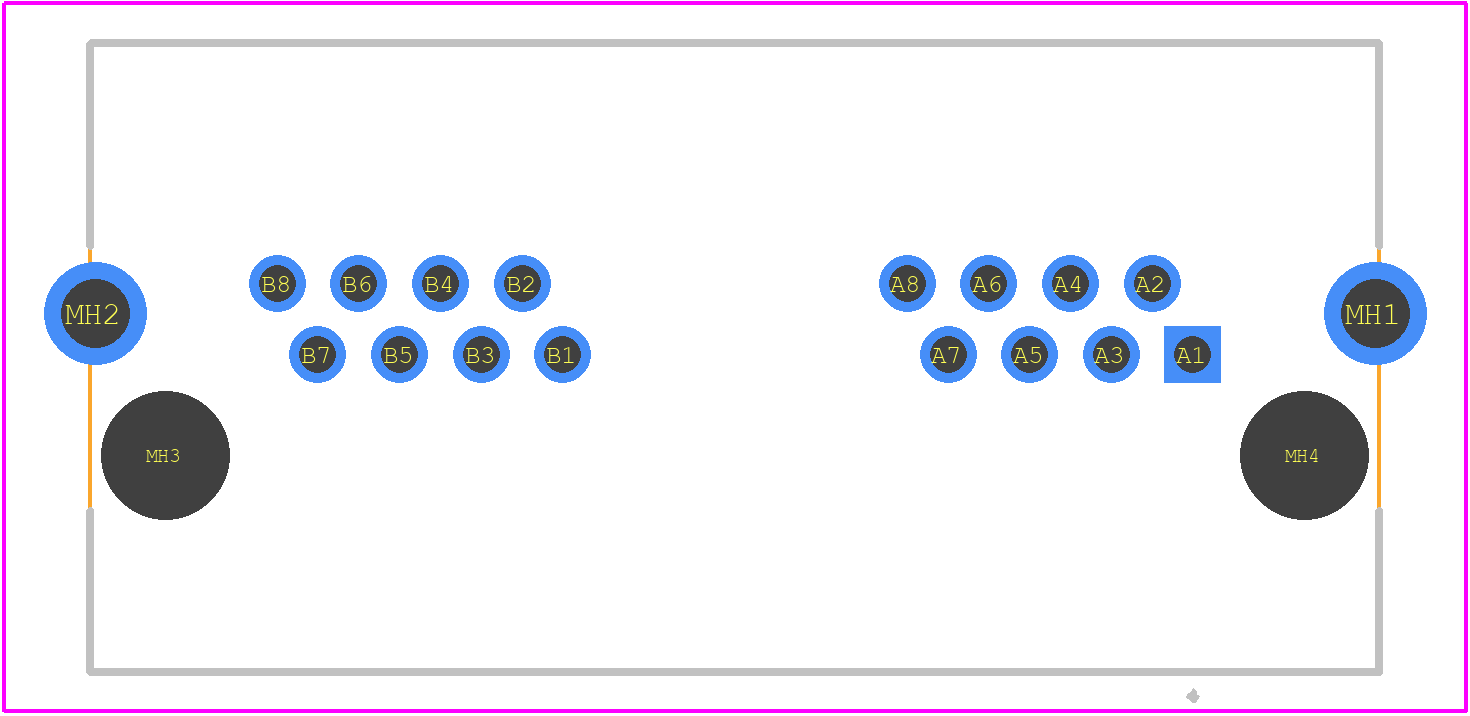

Use the download button to access the HCJT2-805SK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCJT2,
or try a keyword search, such as Telecom and Datacom Connectors
