HCNR200 - Avago Technologies

Description: Optocoupler DC-IN 1-CH Linear Photovoltaic DC-OUT 8-Pin PDIP W

Download HCNR200 Model

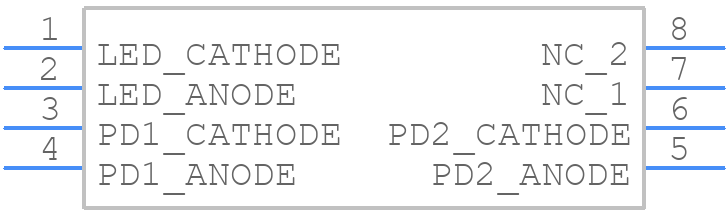

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HCNR200 - Avago Technologies PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 PIN DIP
click to zoom
3D Models
HCNR200 - Avago Technologies  - 3D model - Dual-In-Line Packages - 8 PIN DIP
click to zoom

HCNR200 Details

  • Manufacturer Part Number:

    HCNR200

  • Pbfree Code:

    No

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.4 INCH, DIP-8

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Avago Technologies

  • Additional Feature:

    IEC-60747-5-5; UL RECOGNIZED

  • Configuration:

    DUAL, SIMULTANEOUS OPERATION

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    1.85 V

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e0

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    PHOTODIODE OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

HCNR200 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. Also, consider using a thermal interface material to improve heat transfer.
  • The maximum current rating for the HCNR200 is 1.5A per channel. However, it's recommended to derate the current to 1A per channel for reliable operation.
  • Use a logic analyzer or oscilloscope to monitor the input and output signals. Check for proper power supply voltage, decoupling, and signal integrity. Consult the datasheet and application notes for troubleshooting guidelines.
  • Yes, the HCNR200 is suitable for high-frequency applications up to 100 MHz. However, ensure proper signal termination, and consider using a transmission line or impedance-matched layout to minimize signal reflections.
