A good PCB layout for the HCPL-7800-300E involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input signal and to keep the device away from high-voltage or high-current circuits.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and keeping the device away from heat sources. Additionally, the device should be operated within its recommended temperature range, and the input and output signals should be designed to minimize power dissipation.
The HCPL-7800-300E has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap or mat, storing the devices in anti-static packaging, and avoiding direct contact with the device pins.
Yes, the HCPL-7800-300E is designed to operate with high common-mode voltage. It has a high common-mode rejection ratio (CMRR) and can tolerate common-mode voltages up to ±1.4 kV. However, it's essential to ensure that the device is properly biased and that the input and output circuits are designed to handle the expected common-mode voltage range.
To troubleshoot issues with the HCPL-7800-300E, start by verifying the input signal integrity and ensuring that the device is properly powered and biased. Check the output signal waveform and amplitude, and verify that the output logic levels are correct. If the issue persists, check the PCB layout and ensure that it meets the recommended layout guidelines. If necessary, consult the datasheet and application notes for additional troubleshooting guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-7800-300E Overview

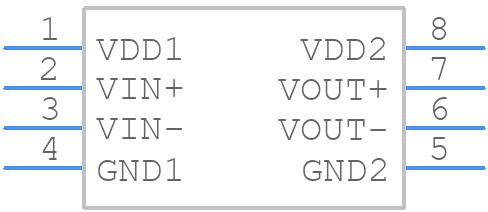

Use the download button to access the HCPL-7800-300E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Isolation Amplifiers
