A good PCB layout for HCPL-7800-500E involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input signal and to keep the device away from high-voltage or high-current circuits.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and keeping the device away from heat sources. Additionally, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
The HCPL-7800-500E has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap or mat, storing the devices in anti-static packaging, and avoiding direct contact with the device pins.
The HCPL-7800-500E is rated for up to 500Vrms of isolation voltage, but it's essential to ensure that the device is used within its specified voltage ratings and that proper safety precautions are taken to avoid electrical shock or other hazards.
To troubleshoot issues with the HCPL-7800-500E, start by checking the input and output signals using an oscilloscope, and verify that the device is properly powered and configured. Check the PCB layout and assembly for any defects or errors, and consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-7800-500E Overview

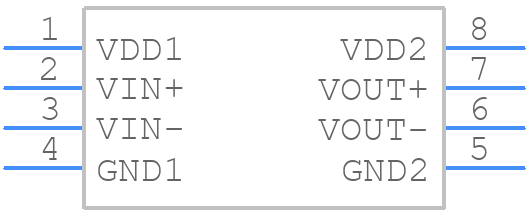

Use the download button to access the HCPL-7800-500E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Isolation Amplifiers
