HCPL-7840-300E - Avago Technologies

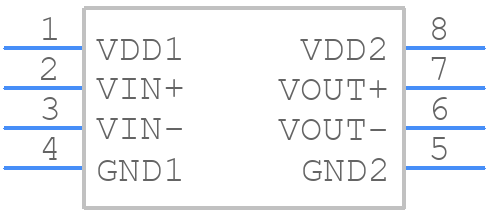

HCPL-7840-300E Details

• Manufacturer Part Number:

  HCPL-7840-300E

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Package Description:

  SOP, GWDIP8,.4

• Pin Count:

  8

• Reach Compliance Code:

  Compliant

• Manufacturer:

  Avago Technologies

• Amplifier Type:

  ISOLATION AMPLIFIER

• Bandwidth (3dB)-Nom:

  100 MHz

• Common Mode Voltage-Max:

  2.8 V

• Isolation Voltage-Min:

  3750 V

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e3

• Length:

  9.8 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  GWDIP8,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Power Supplies:

  5 V

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.7 mm

• Subcategory:

  Isolation Amplifier

• Supply Current-Max:

  15.5 mA

• Supply Voltage Limit-Max:

  5.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Voltage Gain-Max:

  8.4

• Voltage Gain-Min:

  7.6

• Width:

  6.35 mm
