A good PCB layout for HCPL-7840-560E involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the input traces. It's also recommended to use a 0.1uF capacitor between VCC and GND pins to filter out noise.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material, and keeping the device away from heat sources. Additionally, ensure that the device is operated within its recommended temperature range of -40°C to 100°C.
The recommended input signal amplitude for HCPL-7840-560E is 10mA to 20mA, and the recommended frequency range is 0Hz to 10kHz. However, the device can operate at frequencies up to 100kHz, but with reduced sensitivity.
To troubleshoot issues with HCPL-7840-560E, start by verifying the input signal amplitude and frequency, and ensuring that the device is properly powered. Check for any signs of overheating, and verify that the output load is within the recommended range. If issues persist, consult the datasheet and application notes for guidance.
Yes, HCPL-7840-560E is suitable for use in safety-critical applications. It meets the requirements of IEC 60747-5-5, and is certified to UL 1577 and CSA Component Acceptance Notice #5. However, it's essential to follow proper design and testing procedures to ensure the device meets the specific safety requirements of your application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-7840-560E Overview

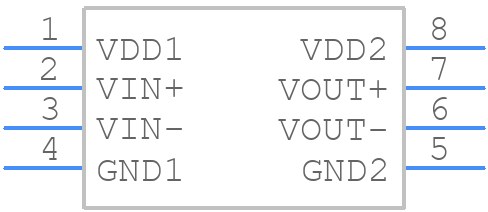

Use the download button to access the HCPL-7840-560E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Isolation Amplifiers
