A good PCB layout for HCPL-7850 involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the input traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material, and keeping the junction temperature below 125°C.
The recommended input signal conditioning for the HCPL-7850 involves using a series resistor and a capacitor to filter out high-frequency noise and ensure a clean input signal. The values of the resistor and capacitor depend on the specific application and signal frequency.
To troubleshoot common issues with the HCPL-7850, start by checking the input signal quality, ensuring it's within the recommended voltage range and frequency. Then, verify the output voltage and current, and check for any signs of overheating or electrical overstress. If issues persist, consult the datasheet and application notes for guidance.
To mitigate EMI and RFI when using the HCPL-7850, use shielding, grounding, and filtering techniques. Ensure proper PCB layout, use a metal shield around the device, and add EMI filters or ferrite beads to the input and output lines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-7850 Overview

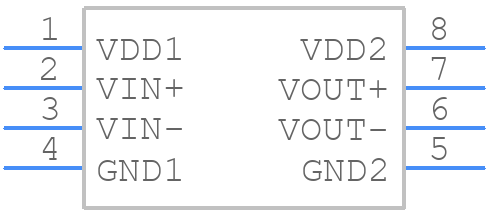

Use the download button to access the HCPL-7850 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Isolation Amplifiers
