A good PCB layout for HCPL-786J-000E involves keeping the input and output circuits separate, using a ground plane, and minimizing track lengths and widths to reduce electromagnetic interference (EMI).
To ensure reliable operation in high-temperature environments, ensure that the device is operated within its specified temperature range (-40°C to 100°C), and consider using a heat sink or thermal management system to prevent overheating.
Exceeding the maximum rated voltage of HCPL-786J-000E can cause permanent damage to the device, including breakdown of the internal insulation and degradation of the optocoupler's performance. Ensure that the device is operated within its specified voltage range (up to 5.5V).
To troubleshoot issues with HCPL-786J-000E, check the input voltage and current, verify the correctness of the input signal, and ensure that the device is properly connected and configured. Use an oscilloscope to measure the output voltage and verify that it meets the expected logic levels.
HCPL-786J-000E is not certified for use in safety-critical applications. For such applications, consider using a device that meets the relevant safety standards, such as IEC 60601-1 or DO-254.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-786J-000E Overview

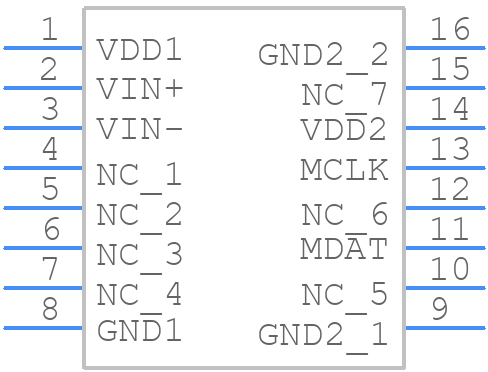

Use the download button to access the HCPL-786J-000E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Analog to Digital Converters
