A good PCB layout for HCPL-788J involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input signal and to keep the device away from high-voltage or high-current circuits.
To ensure reliability in high-temperature applications, it's essential to follow proper derating guidelines, ensure good thermal management, and consider using a heat sink if necessary. Additionally, selecting a suitable package type, such as the 'J' suffix for industrial temperature range, can help ensure reliable operation.
The HCPL-788J has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent damage. It's recommended to use an ESD wrist strap or mat, and to avoid touching the device's pins or leads during handling.
The HCPL-788J is rated for up to 2.5 kVrms of isolation voltage, making it suitable for many high-voltage applications. However, it's essential to ensure that the device is used within its specified voltage ratings and that proper safety precautions are taken to prevent electrical shock or other hazards.
To troubleshoot issues with the HCPL-788J, start by verifying the input and output signals, checking for proper power supply and ground connections, and ensuring that the device is operated within its specified ratings. If issues persist, consult the datasheet and application notes, or contact Broadcom Limited's technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-788J Overview

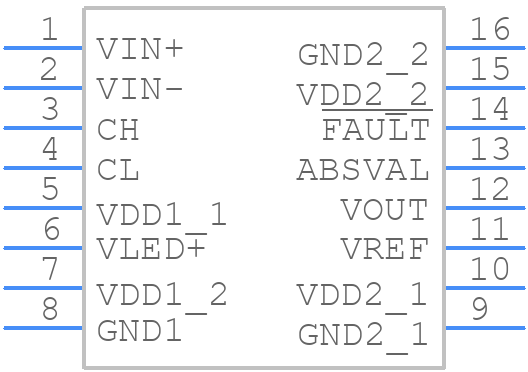

Use the download button to access the HCPL-788J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Isolation Amplifiers
