HCS109DMSR - Renesas Electronics

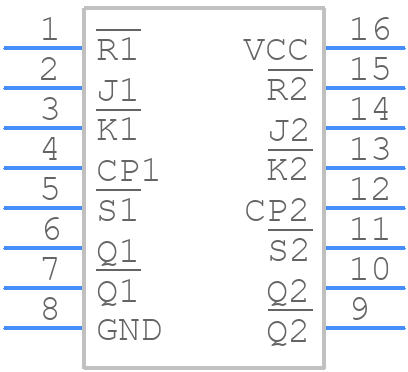

HCS109DMSR Details

• Manufacturer Part Number:

  HCS109DMSR

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SBDIP

• Package Description:

  DIP-16

• Pin Count:

  16

• Manufacturer Package Code:

  D16.3

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Family:

  HC/UH

• JESD-30 Code:

  R-CDIP-T16

• JESD-609 Code:

  e4

• Length:

  19.94 mm

• Logic IC Type:

  J-KBAR FLIP-FLOP

• Number of Bits:

  2

• Number of Functions:

  2

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Polarity:

  COMPLEMENTARY

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  DIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Propagation Delay (tpd):

  35 ns

• Qualification Status:

  Not Qualified

• Screening Level:

  MIL-PRF-38535 Class V

• Seated Height-Max:

  5.08 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Gold (Au)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Total Dose:

  100k Rad(Si) V

• Trigger Type:

  POSITIVE EDGE

• Width:

  7.62 mm
