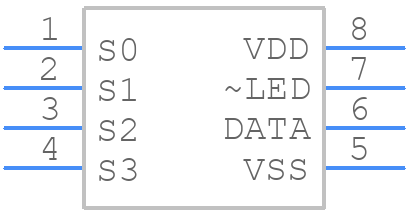

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HCS360-I/SN
- Part Number HCS360-I/SN
- Manufacturer Microchip
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOIC127P600X175-8N-ren1
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
HCS360-I/SN Details
-
Manufacturer Part Number:
HCS360-I/SN
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
0.150 INCH, PLASTIC, SOIC-8
-
Pin Count:
8
-
Manufacturer Package Code:
SOIC-8
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.31.00.01
-
Factory Lead Time:
6 Weeks
HCS360-I/SN Frequently Asked Questions (FAQs)
-
Microchip provides a recommended PCB layout in the HCS360-I/SN evaluation board user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
-
The HCS360-I/SN has a built-in ambient light sensor that can be configured using the ALS_CFG register. The register allows setting the gain, integration time, and threshold for the ambient light sensor. The optimal configuration depends on the specific application and ambient light conditions.
-
The HCS360-I/SN is rated for operation from -40°C to +125°C, but the accuracy and performance of the device may degrade at extreme temperatures. It's essential to consider the thermal management and heat dissipation in the system design to ensure reliable operation.
-
While the HCS360-I/SN is specified for 3.3V operation, it can operate from 2.7V to 3.6V. However, the device's performance, accuracy, and power consumption may vary depending on the supply voltage. It's recommended to consult the datasheet and perform thorough testing before using the device with a different voltage supply.
-
The HCS360-I/SN requires calibration to achieve optimal color accuracy. Microchip provides a calibration procedure in the datasheet, which involves measuring the device's response to different color temperatures and adjusting the calibration coefficients accordingly. The calibration process can be performed using the HCS360-I/SN evaluation board and software tools.
Trust Checks
System Verified
HCS360-I/SN Overview
Use the download button to access the HCS360-I/SN schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HCS36,
or try a keyword search, such as Remote Control ICs
