- Part Number HCS512/SO
- Manufacturer Microchip
- Pin Count 18
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - (SO) - Wide, 7.50 mm (.300 In.) Body [SOIC
- Released Date Apr 16, 2015
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HCS512/SO Details
-
Manufacturer Part Number:
HCS512/SO
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
0.300 INCH, PLASTIC, SOIC-18
-
Pin Count:
18
-
Manufacturer Package Code:
SOIC-18
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.31.00.01
-
Factory Lead Time:
6 Weeks
HCS512/SO Frequently Asked Questions (FAQs)
-
The recommended operating voltage range for HCS512/SO is 4.5V to 5.5V, with a typical voltage of 5V.
-
The POR circuitry in HCS512/SO is designed to reset the device during power-up. To handle POR, ensure that the power supply voltage rises monotonically and reaches the minimum operating voltage (4.5V) within 100ms. Also, add a capacitor (typically 0.1uF) between the VCC pin and GND to filter out noise.
-
The maximum clock frequency supported by HCS512/SO is 20MHz. However, the device can operate at frequencies up to 25MHz with reduced voltage (4.5V) and temperature (up to 85°C) derating.
-
The HCS512/SO has a built-in WDT that can be enabled by setting the WDTE bit in the configuration word. The WDT timeout period can be set to 16ms, 32ms, 64ms, or 128ms by programming the WDT period bits. The WDT can be cleared by writing a '0' to the WDTC bit.
-
The BOD circuitry in HCS512/SO is designed to reset the device when the power supply voltage falls below a certain threshold (typically 4.2V). This helps prevent the device from operating erratically or unpredictably during power dips or brownout conditions.
Trust Checks
Community Provided
System Verified
Community Approved
HCS512/SO Overview

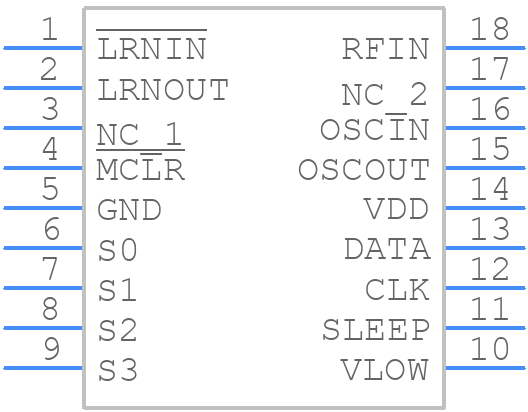

Use the download button to access the HCS512/SO schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCS51,
or try a keyword search, such as Telecom Encryption Circuits
