HCTL-2020 - Avago Technologies

HCTL-2020 Details

• Manufacturer Part Number:

  HCTL-2020

• Pbfree Code:

  No

• Rohs Code:

  No

• Part Life Cycle Code:

  Obsolete

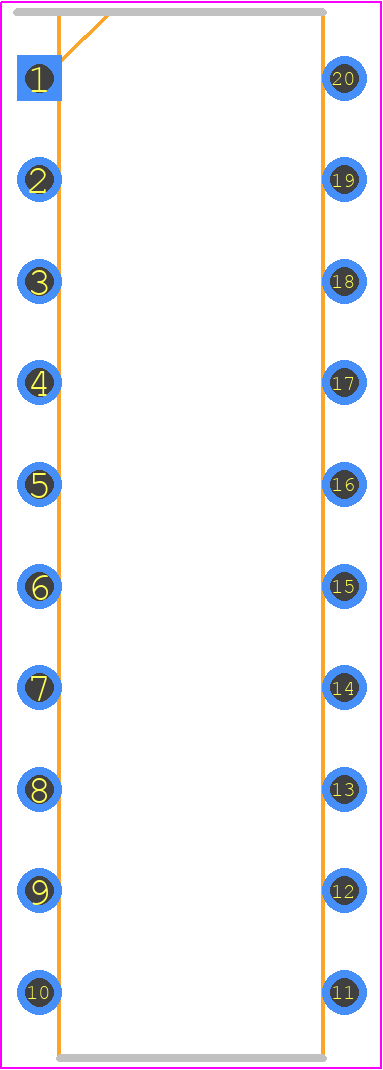

• Package Description:

  DIP, DIP20,.3

• Reach Compliance Code:

  Compliant

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Avago Technologies

• YTEOL:

  0

• Interface IC Type:

  INTERFACE CIRCUIT

• JESD-30 Code:

  R-XDIP-T20

• JESD-609 Code:

  e0

• Length:

  25.91 mm

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP20,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.19 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
