A good PCB layout for the HCTL-2032-SC involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the crystal oscillator. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper powering and decoupling of the HCTL-2032-SC, use a high-quality, low-ESR capacitor (e.g., 0.1uF) as close as possible to the VCC pin. Additionally, use a 10uF capacitor in parallel with a 0.1uF capacitor to filter out high-frequency noise. Make sure to follow the recommended power-up sequence and voltage levels.
When selecting a crystal oscillator for the HCTL-2032-SC, consider the frequency tolerance, load capacitance, and equivalent series resistance (ESR). Choose a crystal with a frequency tolerance of ±20 ppm or better, a load capacitance of 18-22 pF, and an ESR of less than 50 ohms. Ensure the crystal is compatible with the HCTL-2032-SC's internal capacitance and drive level.
To troubleshoot issues with the HCTL-2032-SC's clock output, first verify the power supply and decoupling. Check the clock output frequency and amplitude using an oscilloscope. Ensure the load capacitance and termination are correct. If issues persist, try replacing the crystal oscillator or checking for PCB layout issues.
The HCTL-2032-SC has a maximum junction temperature of 150°C. Ensure good airflow and thermal conduction in the system design. Avoid placing heat-generating components near the HCTL-2032-SC. Consider using a thermal pad or heat sink if the device will be operating in a high-temperature environment.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCTL-2032-SC Overview

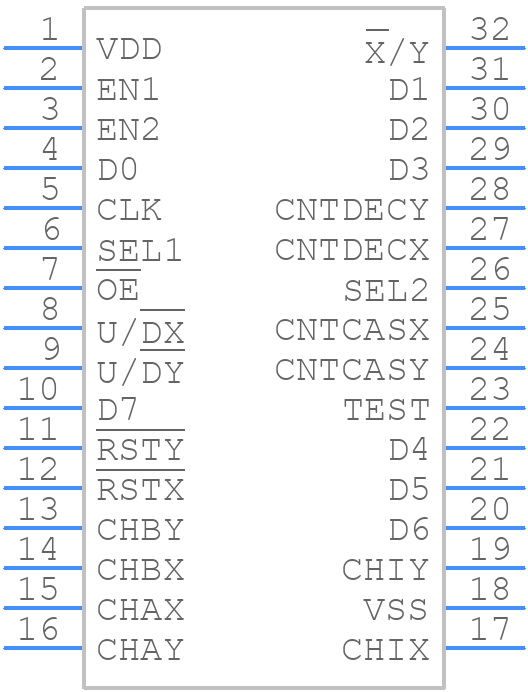

Use the download button to access the HCTL-2032-SC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCTL-,
or try a keyword search, such as Other Interface ICs
