HD1-15530-8 - Renesas Electronics

Description: The Intersil HD-15530 is a high performance CMOS device intended to service the requirements of MlL-STD-1553 and similar Manchester II encoded, time division multiplexed serial data protocols. This LSI chip is divided into two sections, an Encoder and a Decoder. These sections operate completely independent of each other, except for the Master Reset functions. This circuit meets many of the requirements of MIL-STD- 1553. The Encoder produces the sync pulse and the parity bit as well as the encoding of the d

Download HD1-15530-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

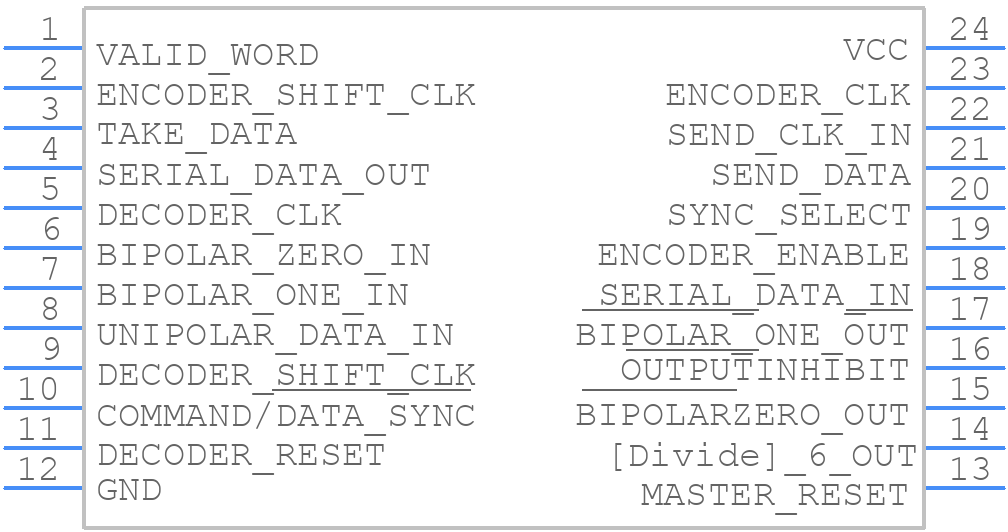

HD1-15530-8 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

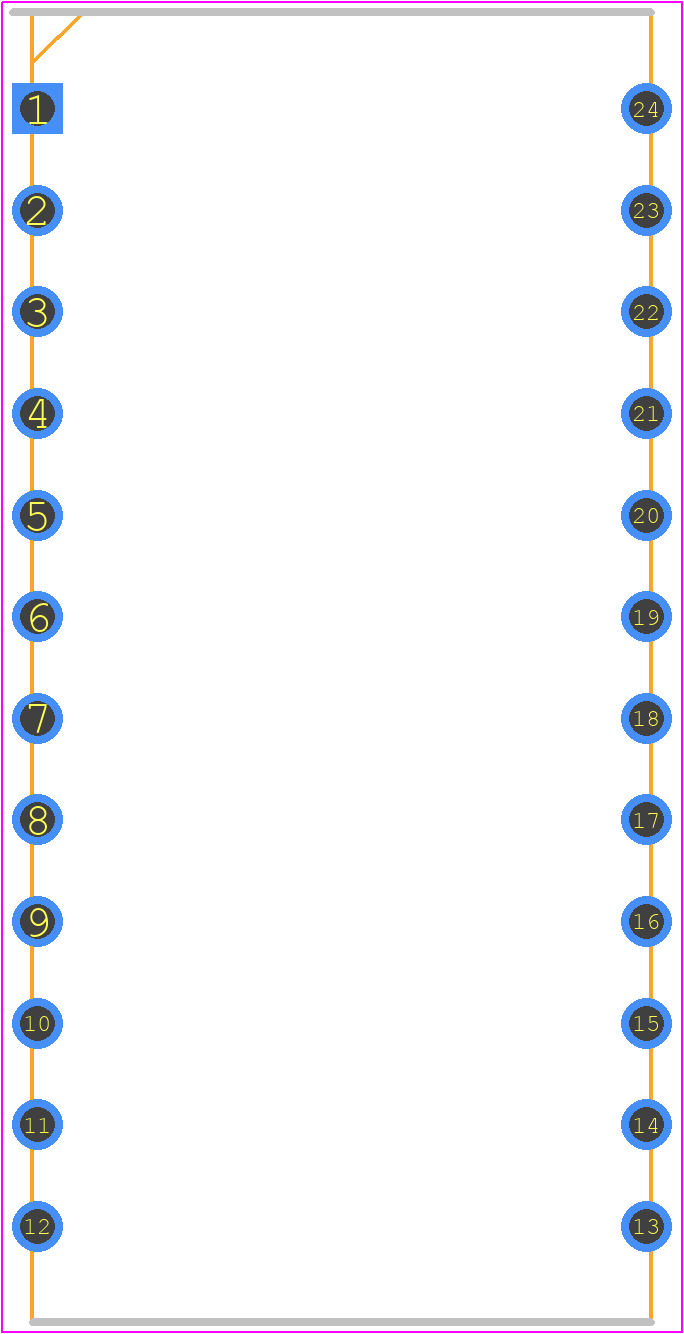

HD1-15530-8 - Renesas Electronics PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - F24.6
click to zoom
3D Models
HD1-15530-8 - Renesas Electronics - 3D model - Ceramic Dual-In-Line Packages - F24.6
click to zoom

HD1-15530-8 Details

  • Manufacturer Part Number:

    HD1-15530-8

  • Brand Name:

    Renesas

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CERDIP

  • Package Description:

    DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    F24.6

  • Country Of Origin:

    Philippines, Thailand

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    4

  • Data Rate:

    1250 Mbps

  • JESD-30 Code:

    R-GDIP-T24

  • JESD-609 Code:

    e0

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Telecom IC Type:

    MANCHESTER ENCODER/DECODER

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

HD1-15530-8 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a dedicated thermal layer and a solid ground plane is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the IC.
  • Use a common mode choke or a ferrite bead to filter out electromagnetic interference (EMI). Ensure proper termination and impedance matching for signal lines.
  • The maximum allowed voltage on the input pins is 5.5V. Exceeding this voltage may cause damage to the device.
  • Ensure that the power supply voltage (VCC) is stable before applying the reset signal (RST). The reset signal should be asserted for at least 10ms to ensure proper initialization.
  • Use 0.1uF and 10uF ceramic capacitors in parallel, placed as close as possible to the VCC pin. This helps to filter out noise and ensure stable operation.
