Description:The HD-6409/883 Manchester Encoder-Decoder (MED) is a High-Speed, low power device manufactured using self-aligned silicon gate technology. The device is intended for use in serial data communication, and can be operated in either of two modes. In the converter mode, the MED converts Nonreturn-to-Zero code (NRZ) into Manchester code and decodes Manchester code into Nonreturn-to-Zero code. For serial data communication, Manchester code does not have some of the deficiencies inherent in Nonreturn-to-Zero code
Renesas provides a recommended PCB layout in their application note (AN1844) for the HD1-6409/883, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
Renesas recommends following the guidelines in their EMC application note (AN1845) for the HD1-6409/883, which includes advice on PCB layout, component selection, and shielding to minimize electromagnetic interference (EMI) and ensure compliance with relevant standards.
While the datasheet specifies an operating temperature range of -40°C to 125°C, Renesas recommends derating the device's power dissipation above 85°C to ensure reliable operation and prevent thermal runaway.
The HD1-6409/883 is designed to meet the requirements of MIL-PRF-38535, a US military standard for radiation-hardened microcircuits. However, it's essential to consult with Renesas and follow their guidelines for radiation testing and qualification to ensure the device meets the specific requirements of your application.
Renesas recommends following the guidelines in their packaging and storage application note (AN1846) for the HD1-6409/883, which includes advice on moisture sensitivity, electrostatic discharge (ESD) protection, and storage conditions to prevent damage and ensure reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HD1-6409/883 Overview

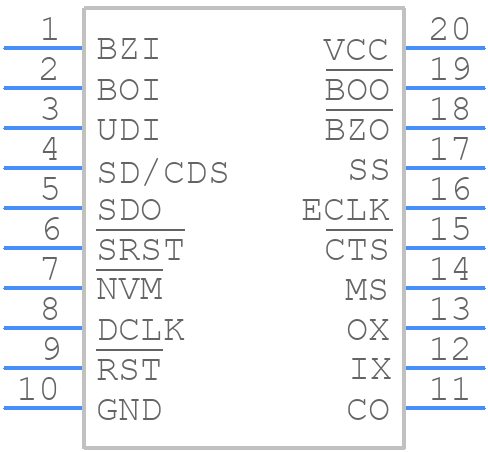

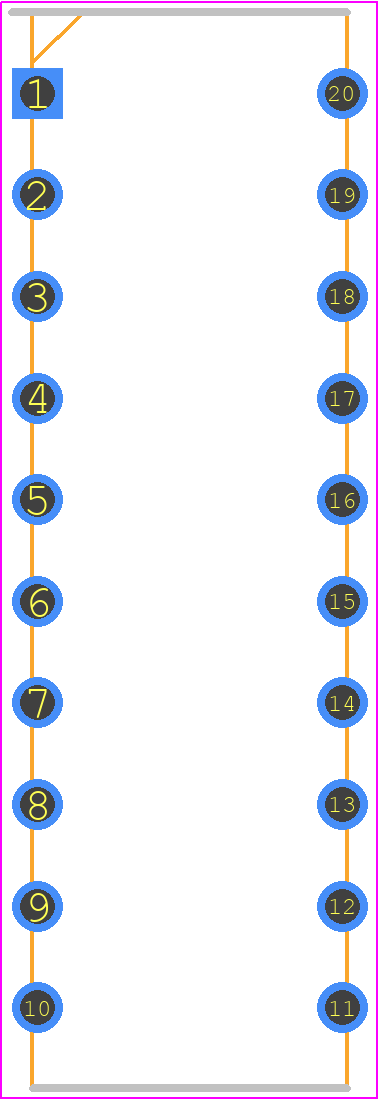

Use the download button to access the HD1-6409/883 schematic symbol and PCB footprint.
