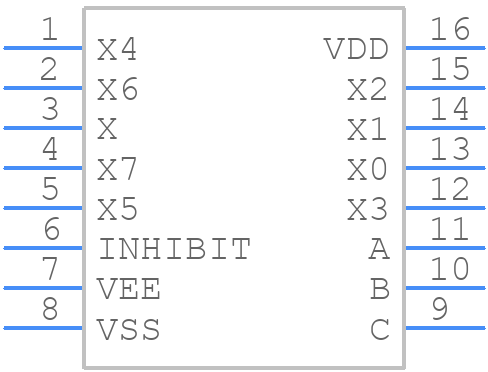

HD14051BP - HITACHI

HD14051BP Details

• Manufacturer Part Number:

  HD14051BP

• Part Life Cycle Code:

  Transferred

• Part Package Code:

  DIP

• Package Description:

  DP-16

• Pin Count:

  16

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Hitachi Ltd

• Analog IC - Other Type:

  SINGLE-ENDED MULTIPLEXER

• JESD-30 Code:

  R-PDIP-T16

• Length:

  19.2 mm

• Number of Channels:

  8

• Number of Functions:

  1

• Number of Terminals:

  16

• On-state Resistance Match-Nom:

  25 Ω

• On-state Resistance-Max (Ron):

  1050 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.06 mm

• Supply Voltage-Max (Vsup):

  18 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Switch-off Time-Max:

  2125 ns

• Switch-on Time-Max:

  2125 ns

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
