Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes thermal vias, copper pours, and component placement guidelines to ensure optimal thermal performance.
Renesas recommends using an external overcurrent protection circuit, such as a current sense resistor and a comparator, to detect overcurrent conditions. The datasheet provides guidelines for selecting the current sense resistor value and setting the overcurrent threshold.
Renesas recommends a power-up sequence that ensures the internal voltage regulators are enabled in the correct order. The recommended sequence is: VCC, then VDD, and finally EN (enable) pin. This sequence helps prevent latch-up and ensures proper device operation.
Renesas provides a troubleshooting guide in their application note documents, which includes steps to verify the I2C bus signals, check for bus contention, and ensure proper pull-up resistor values. Additionally, using an I2C bus analyzer or logic analyzer can help identify issues with the I2C communication.
While the datasheet specifies an operating temperature range of -40°C to 125°C, Renesas recommends derating the device's performance at temperatures above 85°C to ensure reliable operation. It's essential to consider the device's thermal performance and heat dissipation in the system design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HD3-4702-9Z Overview

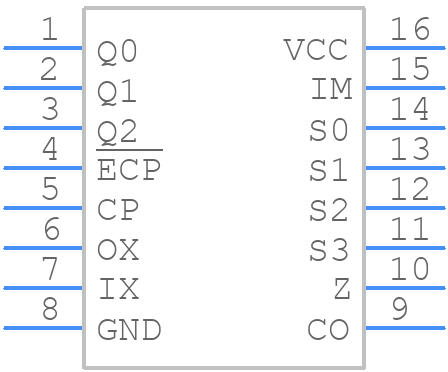

Use the download button to access the HD3-4702-9Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HD3-4,
or try a keyword search, such as Clock Generators
